ADV

Εξαρτήματα Βιδωτά-Σύνδεσμος Μάνικας(Ρουξούνι)
Hose adaptor with BSP threaded female end (R) and EPDM flat gasket
Series of fittings for pipes conveying fluids under pressure with threaded joints.

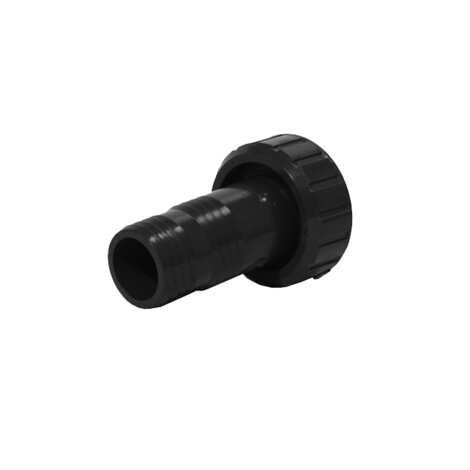

Immagine del portagomma con estremità R a bocchettone femmina filettato ADV

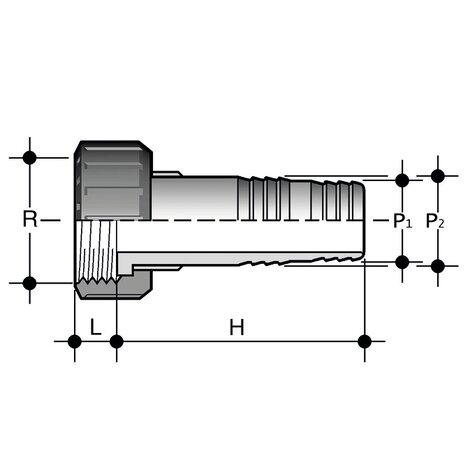

Disegno tecnico del raccordo filettato - portagomma ADV
Immagine del portagomma con estremità R a bocchettone femmina filettato ADV
Disegno tecnico del raccordo filettato - portagomma ADV
Κωδικός προϊόντος Σύστημα R x P[5:1] x P[5:2] PN H L g
ADV012012014 Σύστημα PVC-U 1/2” x 12 x 14 16 56 14 15
ADV034016018 Σύστημα PVC-U 3/4” x 16 x 18 16 60 11,5 24
ADV100020022 Σύστημα PVC-U 1” x 20 x 22 16 67 11 35
ADV114025027 Σύστημα PVC-U 1"1/4 x 25 x 27 16 81 14 55
ADV112030032 Σύστημα PVC-U 1”1/2 x 30 x 32 16 97 16 80
ADV200040042 Σύστημα PVC-U 2” x 40 x 42 16 104 18 140
ADV200050052 Σύστημα PVC-U 2” x 50 x 52 16 111 16 180
ADV214050052 Σύστημα PVC-U 2”1/4 x 50 x 52 16 111 17,5 200
ADV234060064 Σύστημα PVC-U 2”3/4 x 60 x 64 16 123 20 300
