AFV
Εξαρτήματα Βιδωτά-Σύνδεσμος Μάνικας(Ρουξούνι)

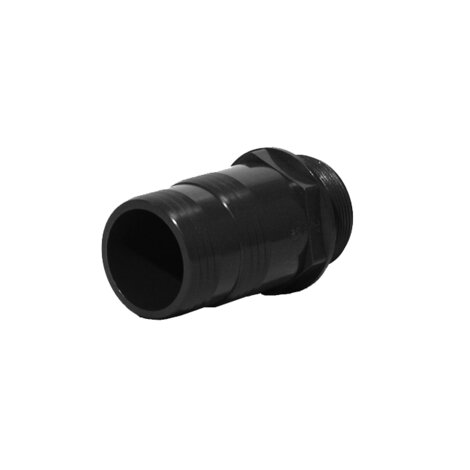

Hose adaptor with BSP threaded male end
Series of fittings for pipes conveying fluids under pressure with threaded joints.

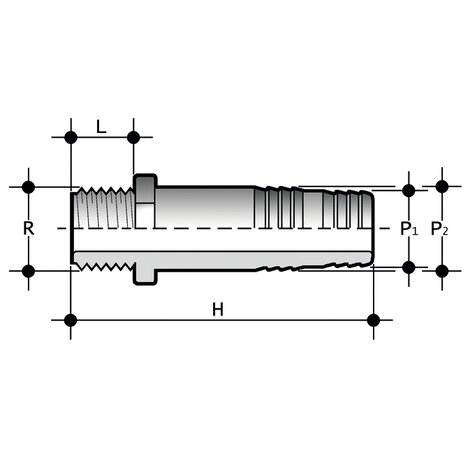

| Κωδικός προϊόντος | tooltipImage | R x P[5:1] x P[5:2] | PN | H | L | g |
|---|---|---|---|---|---|---|
| AFV014012014 | - | 1/4" x 12 x 14 | 16 | 56 | 11 | 7 |
| AFV038016018 | - | 3/8" x 16 x 18 | 16 | 58 | 11,4 | 14 |
| AFV012020022 | - | 1/2" x 20 x 22 | 16 | 66 | 15 | 19 |
| AFV034025027 | - | 3/4" x 25 x 27 | 16 | 81 | 16,3 | 30 |
| AFV100030032 | - | 1" x 30 x 32 | 16 | 97 | 19,1 | 45 |
| AFV114040042 | - | 1"1/4 x 40 x 42 | 16 | 104 | 21,4 | 85 |
| AFV112050052 | - | 1"1/2 x 50 x 52 | 16 | 111 | 21,4 | 120 |
| AFV200060064 | - | 2" x 60 x 64 | 16 | 123 | 25,7 | 180 |
