AIM
Εξαρτήματα Αυτογενής Συγκόλλησης-Σύνδεσμος Μανίκας (Ρουξούνι)

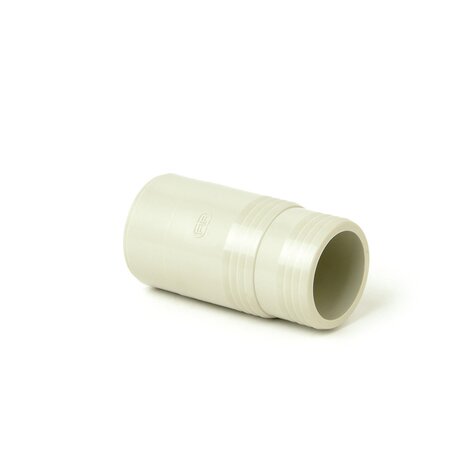

Hose adaptor with male end for socket welding
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Κωδικός προϊόντος | tooltipImage | d x P[5:2] x P[5:1] | PN | H | L | g | DN |
|---|---|---|---|---|---|---|---|
| AIM020022020 | - | 20 x 22 x 20 | 10 | 67 | 16 | 11 | 15 |
| AIM025027025 | - | 25 x 27 x 25 | 10 | 81 | 18 | 20 | 20 |
| AIM032032030 | - | 32 x 32 x 30 | 10 | 95 | 20 | 33 | 25 |
| AIM040042040 | - | 40 x 42 x 40 | 10 | 104 | 22 | 68 | 32 |
| AIM050052050 | - | 50 x 52 x 50 | 10 | 111 | 25 | 100 | 40 |
| AIM063064060 | - | 63 x 64 x 60 | 10 | 122 | 29 | 150 | 50 |
