BIC
Εξαρτήματα Κολλητά-Ρακόρ

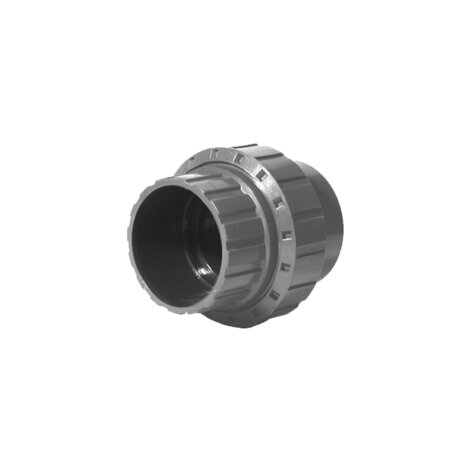

Union with solvent weld socket, with O-Ring in EPM or FKM
Series of fittings designed for conveying fluids under pressure with a cold chemical weld jointing system (solvent welding) using a suitable solvent cement (TemperGLUE WELD-ON) and cleaner-primer.
Κωδικός προϊόντος | d | R[5:1] | PN | E | H | L | Z | g |
---|---|---|---|---|---|---|---|---|
BIC016E | 16 | 3/4" | 16 | 33 | 41 | 14 | 13 | 23 |
BIC020E | 20 | 1" | 16 | 41 | 45 | 16 | 13 | 39 |
BIC025E | 25 | 1"1/4 | 16 | 50 | 51 | 19 | 13 | 68 |
BIC032E | 32 | 1"1/2 | 16 | 58 | 57 | 22 | 13 | 94 |
BIC040E | 40 | 2" | 16 | 72 | 67 | 26 | 15 | 163 |
BIC050E | 50 | 2"1/4 | 16 | 79 | 79 | 31 | 17 | 190 |
BIC063E | 63 | 2"3/4 | 16 | 98 | 98 | 38 | 22 | 355 |
