BIFOV
Αντάπτορες - PVC-U/Ορείχαλκος - Ρακόρ

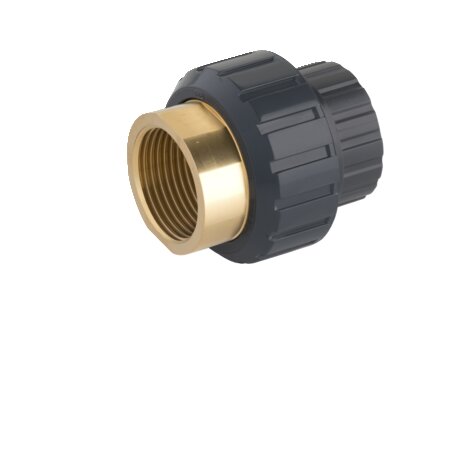

Adaptor union in PVC-U/brass with solvent weld socket d and BSP threaded brass female end R with O-Ring in EPDM
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.

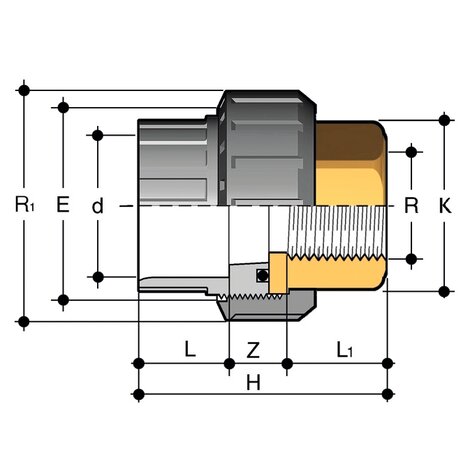

| Κωδικός προϊόντος | Σύστημα | d x R | R[5:1] | PN | E | H | K | L | L[5:1] | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BIFOV016038E | Σύστημα PVC-U | 16 x 3/8" | 3/4" | 16 | 33 | 45,5 | 20 | 14 | 13,5 | 18 | 53 |
| BIFOV020012E | Σύστημα PVC-U | 20 x 1/2" | 1" | 16 | 41 | 48,5 | 25 | 16 | 16,5 | 16 | 86 |
| BIFOV025034E | Σύστημα PVC-U | 25 x 3/4" | 1"1/4 | 16 | 50 | 54,5 | 32 | 19 | 18,5 | 17 | 161 |
| BIFOV032100E | Σύστημα PVC-U | 32 x 1" | 1"1/2 | 16 | 58 | 59,5 | 38 | 22 | 19,5 | 18 | 181 |
| BIFOV040114E | Σύστημα PVC-U | 40 x 1"1/4 | 2" | 16 | 72 | 68,5 | 48 | 26 | 21,5 | 21 | 373 |
| BIFOV050112E | Σύστημα PVC-U | 50 x 1"1/2 | 2"1/4 | 16 | 79 | 84,5 | 55 | 31 | 23 | 24,5 | 460 |
| BIFOV063200E | Σύστημα PVC-U | 63 x 2" | 2"3/4 | 16 | 98 | 94,5 | 69 | 38 | 27 | 29,5 | 824 |
