BIRV
Αντάπτορες-Ρακόρ

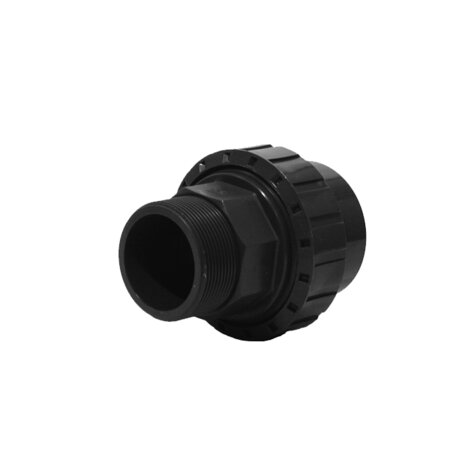

Union with fixed BSP threaded male end and O-Ring in EPDM
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.

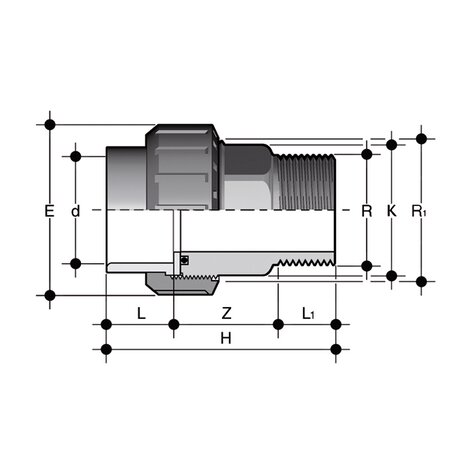

| Κωδικός προϊόντος | Σύστημα | d x R | R[5:1] | PN | E | H | K | L | L[5:1] | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BIRV050112E | Σύστημα PVC-U | 50 x 1"1/2 | 2"1/4 | 16 | 79 | 98 | 53 | 31 | 21,4 | 45,6 | 200 |
| BIRV050200E | Σύστημα PVC-U | 50 x 2" | 2"1/4 | 16 | 79 | 102 | 53 | 31 | 25,7 | 45,3 | 220 |
| BIRV063200E | Σύστημα PVC-U | 63 x 2" | 2"3/4 | 16 | 98 | 116 | 67 | 38 | 25,7 | 52,3 | 380 |
