BLV
Εξαρτήματα σύμφωνα με Αγγλικά Πρότυπα-Ρακόρ

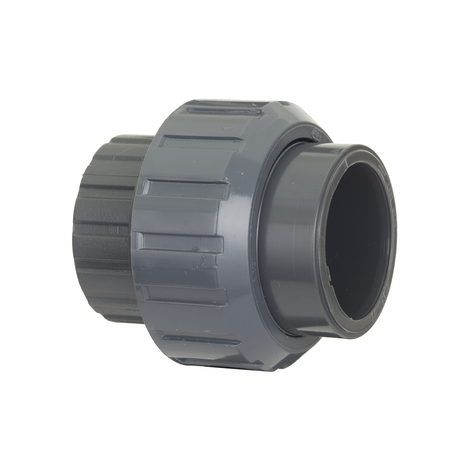

Union with solvent weld sockets, O-Ring in EPDM
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
| Κωδικός προϊόντος | tooltipImage | d | PN | R[5:1] | E | H | L | Z | g | Class |
|---|---|---|---|---|---|---|---|---|---|---|
| BLV012E | - | 1/2" | 15 | 1" | 40.5 | 45 | 16 | 13 | 39 | E |
| BLV034E | - | 3/4" | 15 | 1"1/4 | 50 | 51 | 19 | 13 | 65 | E |
| BLV100E | - | 1" | 15 | 1"1/2 | 57.5 | 57 | 22 | 13 | 94 | E |
| BLV114E | - | 1"1/4 | 15 | 2" | 71.5 | 67 | 26 | 15 | 150 | E |
| BLV112E | - | 1"1/2 | 15 | 2"1/4 | 79 | 79 | 31 | 17 | 190 | E |
| BLV200E | - | 2" | 15 | 2"3/4 | 98 | 98 | 38 | 21 | 400 | E |
