DLV
Εξαρτήματα σύμφωνα με Αγγλικά Πρότυπα-Συστολές

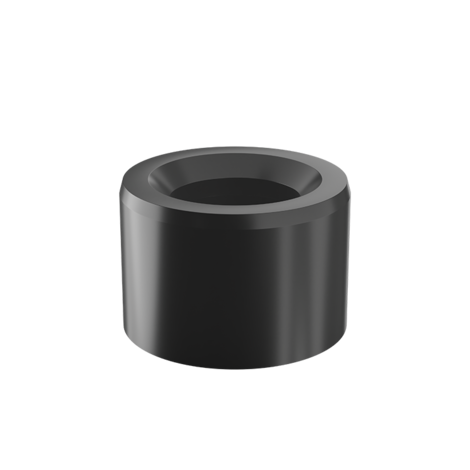

Reducing bush with solvent weld spigot (d) and solvent weld socket (d1 reduced) (fig. A)
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
| Κωδικός προϊόντος | tooltipImage | d x d[5:1] | PN | L | Z | g |
|---|---|---|---|---|---|---|
| DLV012038 | - | 1/2" x 3/8" | 15 | 16,5 | 2 | 3 |
| DLV300212 | - | 3" x 2"1/2 | 15 | 50,5 | 7 | 125 |
| DLV212200 | - | 2"1/2 x 2" | 15 | 43,5 | 7,5 | 100 |
| DLV112114 | - | 1"1/2 x 1"1/4 | 15 | 31 | 4 | 20 |
| DLV112100 | - | 1"1/2 x 1" | 15 | 30 | 7,5 | 42 |
| DLV114100 | - | 1"1/4 x 1" | 15 | 27 | 4 | 19 |
| DLV100034 | - | 1" x 3/4" | 15 | 22,5 | 3 | 10 |
| DLV100012 | - | 1" x 1/2" | 15 | 22,5 | 6,5 | 18 |
| DLV034012 | - | 3/4" x 1/2" | 15 | 19,5 | 3 | 5,5 |
| DLV400300 | - | 4" x 3" | 15 | 63 | 12 | 331 |
