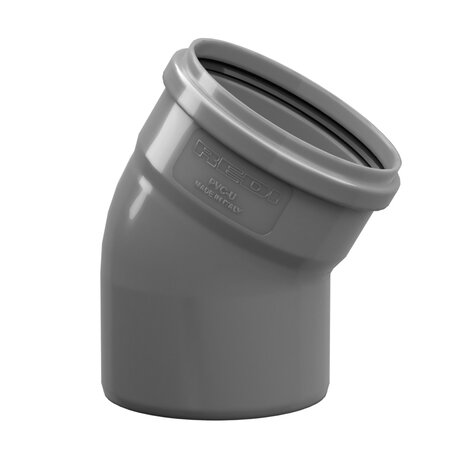

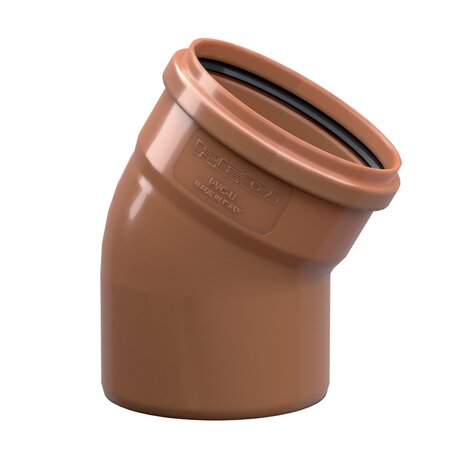

Γωνία 30° S/S

Οι σωλήνες και τα εξαρτήματα είναι κατασκευασμένα από PVC-U για εφαρμογές χωρίς πίεση και για εφαρμογές υπόγειας αποχέτευσης λυμάτων. Ο κωδικός εφαρμογής είναι "U" ή "UD" .
Fixed Ring
Επιστροφή Τεχνικό Φυλλάδιο
Κωδικός προϊόντος dnMm S (mm) product.detail.attribute.z1Mm product.detail.attribute.z2Mm l1Mm l2Mm alpha dGasketMm
011115E 110 3,2 17 29 61 50 30° Standard
0111142 110 3,2 17 29 61 50 30° Bloccata/Fixed
0111242 125 3,2 19 29 68 62 30° Bloccata/Fixed
011125E 125 3,2 19 29 68 62 30° Standard
0111642 160 4,0 25 40 82 72 30° Bloccata/Fixed
011165E 160 4,0 25 40 82 72 30° Standard
0112042 200 4,9 30 49 100 86 30° Bloccata/Fixed
011205E 200 4,9 30 49 100 86 30° Standard
0112552 250 6,2 37 59 134 103 30° Standard
0112591 250 6,2 37 59 134 103 30° Standard
0113052 315 7,7 47 74 144 118 30° Standard
0113091 315 7,7 47 74 144 118 30° Standard
1114052 400 9,8 65 98 165 140 30° Standard
1114091 400 9,8 65 98 165 140 30° Standard
N115091 500 12,2 165 230 160 250 30° Standard
N116391 630 - - - - - 30° Standard
