MLV
Εξαρτήματα σύμφωνα με Αγγλικά Πρότυπα με Μούφα

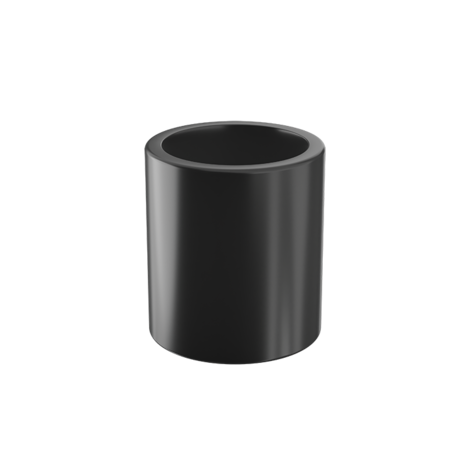

Solvent weld double socket
Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
| Κωδικός προϊόντος | tooltipImage | d | PN | E | L | Z | g | Class |
|---|---|---|---|---|---|---|---|---|
| MLV012 | - | 1/2" | 15 | 27 | 16,5 | 2 | 13 | E |
| MLV600 | - | 6" | 12 | 194,5 | 90 | 10 | 1800 | D |
| MLV400 | - | 4" | 15 | 131 | 63 | 5 | 680 | E |
| MLV300 | - | 3" | 15 | 108 | 50,5 | 5,5 | 420 | E |
| MIV075 | - | 2"1/2 | 15 | 90 | 44 | 4 | 250 | E |
| MLV200 | - | 2" | 15 | 76 | 38 | 3 | 206 | E |
| MLV112 | - | 1"1/2 | 15 | 61 | 31 | 3 | 118 | E |
| MLV114 | - | 1"1/4 | 15 | 50 | 26 | 3 | 58 | D |
| MLV100 | - | 1" | 15 | 41 | 22,5 | 2 | 36 | E |
| MLV034 | - | 3/4" | 15 | 33 | 19,5 | 2 | 15 | E |
| MLV800 | - | 8" | 12 | 257 | 115,5 | 12 | 4950 | D |
