PSE
EASYFIT SERIES Βάνες Σφαιρικές DN 65Γ·100
Stem extension
MAGNUM 3G is completed with a range of tools and accessories to help the installer
Χαρακτηριστικά:
- Upper part (PVC-U)
- Bottom part (PVC-U)
- Bolts (zinc plated steel)
- Nuts (zinc plated steel )
- Gasket (NBR)
- Reinforcing ring (Stainless steel)

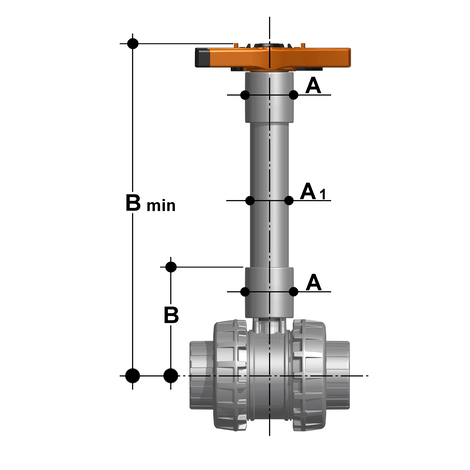

| Κωδικός προϊόντος | d | inch | DN | A | A[5:1] | B | B min | product.detail.attribute.Ø ASTM-BS pipe inch | Ø Pipe | to be used with: |
|---|---|---|---|---|---|---|---|---|---|---|
| PSE090 | 90 | 3" | 80 | 76 | 63 | 166 | 371 | 2" | 63 | VEE-VXE |
| PSE110 | 110 | 4" | 100 | 76 | 63 | 186 | 433 | 2" | 63 | VEE-VXE |
| PSE300 | - | - | - | - | - | - | - | - | - | - |
| PSE400 | - | - | - | - | - | - | - | - | - | - |
- The reinforcing bush are used to reinforce the pipe PE100 (SDR11) e PE-X, to elong the lifetime of the pipeline and to reduce the collapse risk of the pipe in disadvantages conditions. They use is particurarly suggested using PE-X pipes. The two tightening keys (d.16-63 and d.75-110) are important tools to install the MAGNUM 3G fittings
