PSKD
DUAL BLOCKΒ SERIES Βάνες Σφαιρικές DN 10Γ·50
Stem extension
MAGNUM 3G is completed with a range of tools and accessories to help the installer
Χαρακτηριστικά:
- Upper part (PVC-U)
- Bottom part (PVC-U)
- Bolts (zinc plated steel)
- Nuts (zinc plated steel )
- Gasket (NBR)
- Reinforcing ring (Stainless steel)

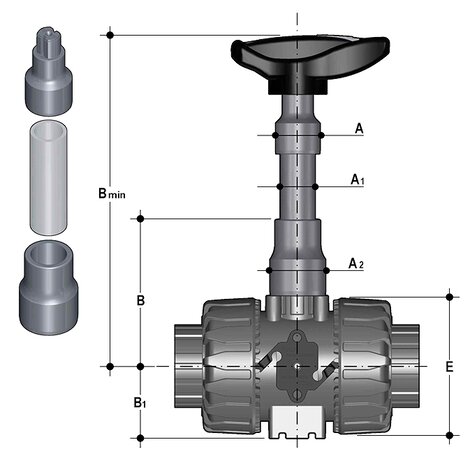

| Κωδικός προϊόντος | tooltipImage | d | DN | A | A[5:1] | A[5:2] | E | B | B[5:1] | B [5:min] | Ø Pipe | to be used with: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSKD020 | - | 20 | 15 | 32 | 25 | 32 | 54 | 70 | 29 | 139,5 | 25 | VKD-TKD |
| PSKD025 | - | 25 | 20 | 32 | 25 | 40 | 65 | 89 | 34,5 | 164,5 | 25 | VKD-TKD |
| PSKD032 | - | 32 | 25 | 32 | 25 | 40 | 73 | 93,5 | 39 | 169 | 25 | VKD-TKD |
| PSKD040 | - | 40 | 32 | 40 | 32 | 50 | 86 | 110 | 46 | 200 | 32 | VKD-TKD |
| PSKD050 | - | 50 | 40 | 40 | 32 | 50 | 98 | 116 | 52 | 206 | 32 | VKD-TKD |
| PSKD063 | - | 63 | 50 | 40 | 32 | 59 | 122 | 122 | 62 | 225 | 32 | VKD-TKD |
- The reinforcing bush are used to reinforce the pipe PE100 (SDR11) e PE-X, to elong the lifetime of the pipeline and to reduce the collapse risk of the pipe in disadvantages conditions. They use is particurarly suggested using PE-X pipes. The two tightening keys (d.16-63 and d.75-110) are important tools to install the MAGNUM 3G fittings
