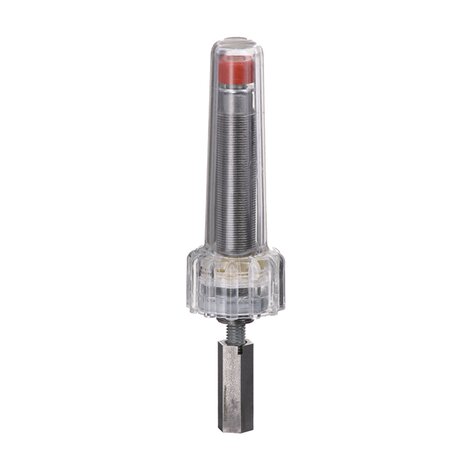

Stroke limiter with position indicator and manual override
Βάνες Διαφράγματος με Πνευματικό Ενεργοποιητή
MAGNUM 3G is completed with a range of tools and accessories to help the installer
Χαρακτηριστικά:
- Upper part (PVC-U)
- Bottom part (PVC-U)
- Bolts (zinc plated steel)
- Nuts (zinc plated steel )
- Gasket (NBR)
- Reinforcing ring (Stainless steel)
| Κωδικός προϊόντος | tooltipImage | To be used with: | DN |
|---|---|---|---|
| ZLIM001 | - | DK / NC | 15 ÷ 32 |
| ZLIM002 | - | DK / NO - DA | 15 ÷ 32 |
| ZLIM004 | - | DKM / NC | 40 ÷ 65 |
| ZLIM006 | - | DKM / NO - DA | 40 ÷ 65 |
| ZLIM007 | - | DKP / NC | 25 ÷ 32 |
| ZLIM008 | - | DKP / NC | 40 |
| ZLIM009 | - | DKP / NC | 50 ÷ 65 |
| ZLIM010 | - | DKP / NO - DA | 25 ÷ 32 |
| ZLIM011 | - | DKP / NO - DA | 40 |
| ZLIM012 | - | DKP / NO - DA | 50 ÷ 65 |
| ZLIM103 | - | - | - |
| ZLIM104 | - | - | - |
- The reinforcing bush are used to reinforce the pipe PE100 (SDR11) e PE-X, to elong the lifetime of the pipeline and to reduce the collapse risk of the pipe in disadvantages conditions. They use is particurarly suggested using PE-X pipes. The two tightening keys (d.16-63 and d.75-110) are important tools to install the MAGNUM 3G fittings
