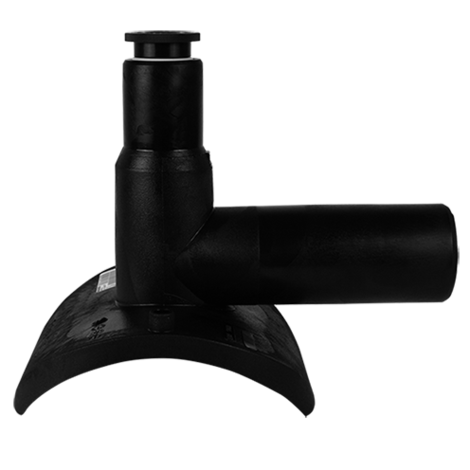

Pressure Tapping Tee Top-Loading and Top-Loading/Relining with extra long outlet spigot

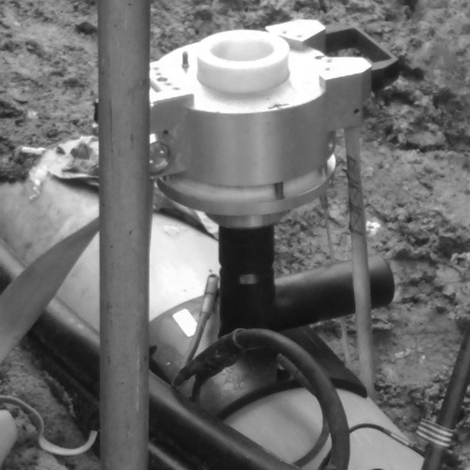

Suitable for all pipe diameters in the given range by means of the FRIATOP clamping unit (see application picture and product range FRIATOOLS Ref.-No. 613350).
Leak free and swarfless tapping up to 10 bar (gas) or 16 bar (water).
Integral drill with upper and lower stop, guided in a metal sleeve. With exposed heating element for optimal heat transfer.
End plugs with internal O-ring seal. Fusible stack (d3 50 = K). Pressure test possible before tapping.
For pressure test adapter and actuating key see pictures below and product range FRIATOOLS. Length of the outlet spigots dimensioned for 2 fusion operations.
Other outlet dimensions with electrofusion reducers MR.
Suitable for all pipe diameters in the given range by means of the FRIATOP clamping unit (see application picture and product range FRIATOOLS Ref.-No. 613350).
Leak free and swarfless tapping up to 10 bar (gas) or 16 bar (water).
Integral drill with upper and lower stop, guided in a metal sleeve. With exposed heating element for optimal heat transfer.
End plugs with internal O-ring seal. Fusible stack (d3 50 = K). Pressure test possible before tapping.
For pressure test adapter and actuating key see pictures below and product range FRIATOOLS. Length of the outlet spigots dimensioned for 2 fusion operations.
Other outlet dimensions with electrofusion reducers MR.
PE 100 SDR 11
Maximum working pressure 16 bar (water)/10 bar (gas)
| Κωδικός προϊόντος | product.detail.attribute.d1Small | d2 | BX | PU | d3 | L | t1 | t2 | z | B | Drilling Ø da |
Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 615339 | 250-315 (- 400) | 63 | 4 | 72 | 50 | 167 | 58 | 118 | 180 | 195 | 30 | 1,360 |
FRIALEN-Pressure Tapping Tees DAA-TL and DAA-TL/RE can be used for pipes of SDR stages 11 to 17.6
Other outlet dimensions with electrofusion reducers MR
DVGW-Registration Nos.: DV-8606AU 2249 and DV-8611AU 2250
Areas of Application
The FRIALEN-DAA-TL and DAA-TL/RE Pressure Tapping Tees are used for branches of unpressurised and pressurised pipelines for variable adaption to all pipe diameters in the given range.
Outlet spigots prepared for receiving gas flow controllers. Dimensions on request.
Assembly Instructions
The fusion of the HDPE distribution pipes and the house connections with FRIALEN-Pressure Tapping Tees takes place by FRIALEN-fusing – leakproof and longitudinally strong.
The saddle and the outlet spigot have to be prepared according to the general installation instructions (see “Assembly Instructions” for “FRIALEN-Safety Fittings for house connections and distribution pipes up to d 225” and “FRIALEN-Special Technology for laying large bore pipes and relining pipe networks”). This involves removing the oxide skin and cleaning
the pipe covered by the saddle as well as the outlet spigot and the pipe end. Component is clamped onto the pipe using the FRIALEN clamping device FRIATOP.
Good reasons for using the FRIALEN-DAA-TL and DAA-TL/RE:
Compact construction
Safe clamping of component using the FRIATOP clamping unit
Preassembled unit without loose parts
Leakage check possible before tapping
Swarfless tapping
Leakage-free tapping of gas pipe up to 10 bar working pressure
Little force required for tapping
Punched-out pipe piece fits securely in drill
Drill guided in metal sleeve
Drill with upper and lower stop
Extra wide fusion zone
Dome can be fused with cap after tapping
Length of outlet spigot dimensioned for two fusion operations
Additional barcode for tracing back the underground fitting (Traceability-Coding)
