TIF
Εξαρτήματα Αυτογενής Συγκόλλησης

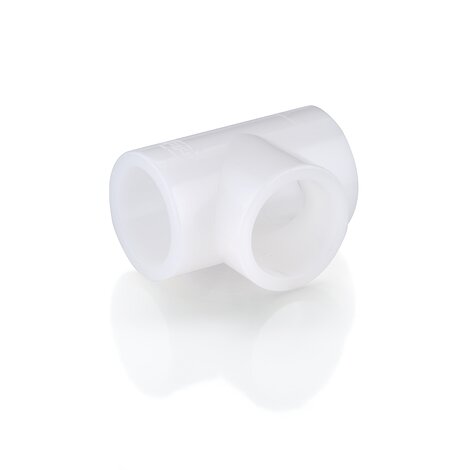

90Β° Tee for socket welding
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).
| Κωδικός προϊόντος | tooltipImage | d | PN | E | H | Z | g |
|---|---|---|---|---|---|---|---|
| TIF016 | - | 16 | 16 | 22 | 23 | 10 | 18 |
| TIF020 | - | 20 | 16 | 28 | 27 | 13 | 35 |
| TIF025 | - | 25 | 16 | 33 | 32 | 16 | 55 |
| TIF032 | - | 32 | 16 | 41 | 37 | 19 | 90 |
| TIF040 | - | 40 | 16 | 51 | 43 | 22 | 150 |
| TIF050 | - | 50 | 16 | 63 | 52 | 29 | 270 |
| TIF063 | - | 63 | 16 | 79 | 63 | 35 | 470 |
| TIF075 | - | 75 | 16 | 93 | 71 | 40 | 665 |
| TIF090 | - | 90 | 16 | 109 | 82 | 46 | 1025 |
| TIF110 | - | 110 | 16 | 133 | 99 | 58 | 1800 |
