TIMV
Αντάπτορες

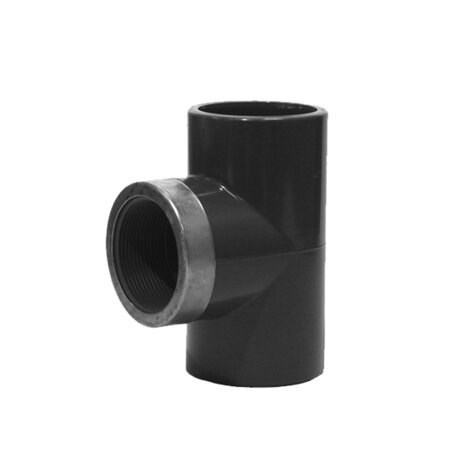

90Β° Tee with reinforced end: solvent weld socket d and BSP threaded female branch R with stainless steel reinforcing ring
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
| Κωδικός προϊόντος | tooltipImage | d x R | PN | E | E[5:1] | L | L[5:1] | Z | Z[5:1] | g |
|---|---|---|---|---|---|---|---|---|---|---|
| TIMV016038 | - | 16 x 3/8" | 16 | 23,5 | 24,5 | 14 | 11,4 | 9 | 11 | 24 |
| TIMV020012 | - | 20 x 1/2" | 16 | 28,5 | 29 | 16 | 15 | 12 | 13 | 38 |
| TIMV025034 | - | 25 x 3/4" | 16 | 35 | 36 | 19 | 16,3 | 15 | 17 | 60 |
| TIMV032100 | - | 32 x 1" | 16 | 43 | 44 | 22 | 19,1 | 18 | 21 | 105 |
| TIMV040114 | - | 40 x 1"1/4 | 16 | 50 | 51 | 26 | 21,4 | 21,5 | 27 | 125 |
| TIMV050112 | - | 50 x 1"1/2 | 16 | 61 | 62 | 31 | 21,4 | 27 | 37 | 210 |
| TIMV063200 | - | 63 x 2" | 16 | 76 | 77 | 38 | 25,7 | 33,5 | 46 | 415 |
