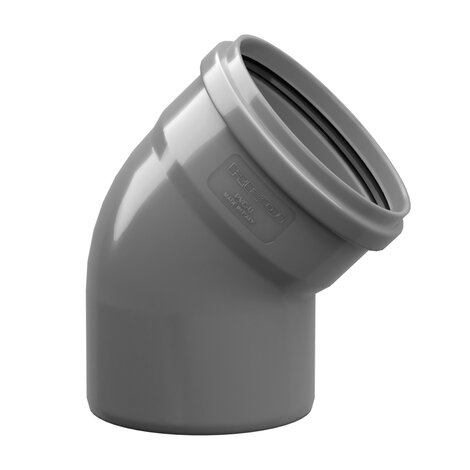

Γωνία 45° S/S

Οι σωλήνες και τα εξαρτήματα είναι κατασκευασμένα από PVC-U για εφαρμογές χωρίς πίεση και για εφαρμογές υπόγειας αποχέτευσης λυμάτων. Ο κωδικός εφαρμογής είναι "U" ή "UD" .
Standard lip ring
Επιστροφή Τεχνικό Φυλλάδιο

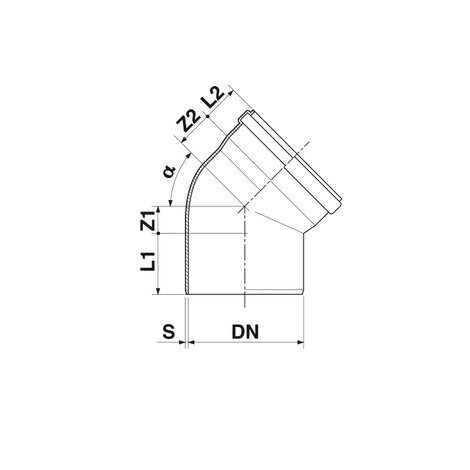

Κωδικός προϊόντος dnMm S (mm) product.detail.attribute.z1Mm product.detail.attribute.z2Mm l1Mm l2Mm alpha dGasketMm
0121142 110 3,2 23 37 62 56 45° Bloccata/Fixed
012115E 110 3,2 23 37 62 56 45° Standard
0701242 125 3,2 29 40 67 62 45° Bloccata/Fixed
070125E 125 3,2 29 40 68 56 45° Standard
0702242 125 3,7 29 49 68 56 45 Standard
0701642 160 4,0 37 51 80 66 45° Bloccata/Fixed
010165E 160 4,0 14 28 82 72 15° Standard
0701542 160 4,7 23 50 81 72 45 Standard
0702042 200 4,9 44 63 99 80 45° Bloccata/Fixed
070205E 200 4,9 44 63 99 80 45° Standard
0122552 250 6,2 58 79 125 96 45° Standard
0122591 250 6,2 58 79 125 96 45° Standard
0123052 315 7,7 73 100 144 118 45° Standard
0123091 315 7,7 73 100 144 118 45° Standard
1124052 400 9,8 91 126 165 140 45° Standard
1124091 400 9,8 91 126 165 140 45° Standard
1125052 500 9,8 103 152 160 150 45° Standard
1125091 500 9,8 103 152 160 150 45° Standard
N126391 630 - - - - - 45° Standard
