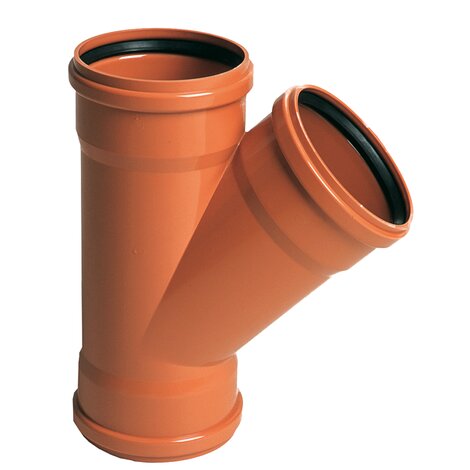

45º branch female/female

Go back Data sheet
45º branch female/female
Reference characteristics Box units measurement DN DN 1 L1 L2 S s1 z1 z2 product.detail.attribute.z3
032094 ORANGE 4 160 160 160 72 72 4.0 - 52 203 203
032203 ORANGE 2 200 200 200 181 81 4.9 4.9 66 256 256
032204 ORANGE 1 250 250 250 101 101 6.2 6.2 101 311 311
032205 ORANGE 1 315 315 315 117 117 7.7 7.7 113 392 392
