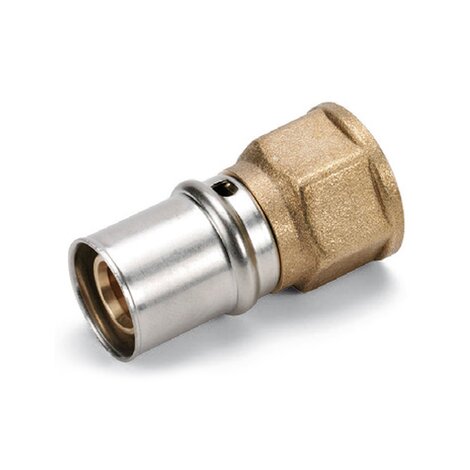

Adapter female thread
FLUXO MULTILAYER SYSTEM FOR HOT AND COLD WATER SUPPLY
PEX/AL/PEX Multilayer System for domestic hot and cold water supply and for air conditioning and heating systems. Modern and simple, this system combines the benefits of hi-tech multilayer pipes with specifically-developed brass fittings. With a few operations: cutting the pipe, chamfering, inserting the fitting and pressing, and the connection is finished with the utmost ease and at top speed!
SYSTEM CERTIFICATIONS: The FLUXO system has been tested and certified by significant certifying bodies such as: KIWA (Netherlands) and KQ (France) valid for the range included in the Avis Tecnique 14/15-1828 in compliance with the UNI EN ISO 21003 Standard ensuring duration, reliability and safety.
APPLICATION AREA: Domestic water and heating; Cooling systems; Hygiene and drinking water.
| note : | System certifications: The Fluxo® system has been tested and certified by significant certifying bodies such as: KIWA (Netherlands) and KQ (France) valid for the range included in the Avis Tecnique 14/15-1828 in compliance with the UNI EN ISO 21003 Standard ensuring duration, reliability and safety. |
| Reference | tooltipImage | Ø Fitting (mm) | Ø Thread (mm) | Type |
|---|---|---|---|---|
| MM4160P | - | 16 | 1/2'' | - |
| MM4190P | - | 18 | 3/4'' | - |
| MM4200P | - | 20 | 1/2'' | - |
| MM4210P | - | 20 | 3/4'' | - |
| MM4260P | - | 26 | 3/4'' | - |
| MM4270P | - | 26 | 1'' | - |
| MM4320P | - | 32 | 1'' | - |

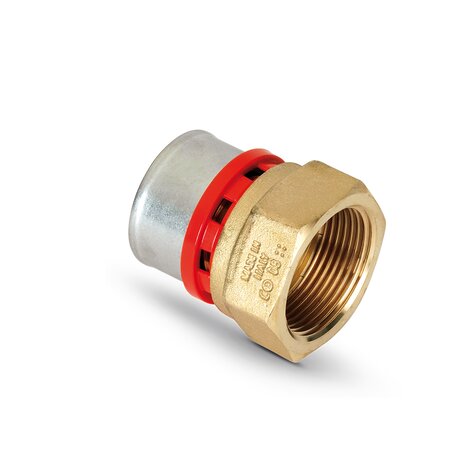

| MM4400P | - | 40 | 1'' 1/4 | Plastic sleeve-holder |
| MM4510P | - | 50 | 1'' 1/2 | Plastic sleeve-holder |
| MM4630P | - | 63 | 2'' | Plastic sleeve-holder |
| MM4730P | - | 75 | 2'' 1/2 | Plastic sleeve-holder |
