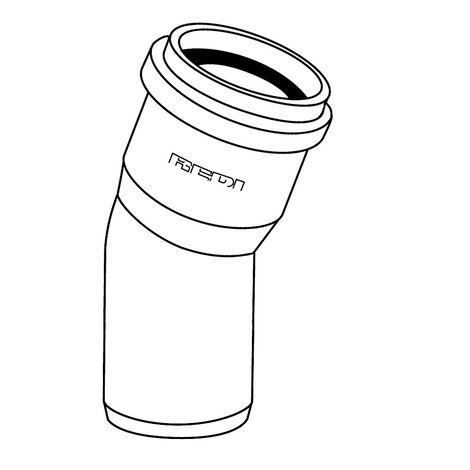

Bend S/S 30°
PVC soil & waste push-fit fittings for waste water discharge are suitable for installation in civil and industrial buildings. Material and European Norm UNI EN1329.
| note : | Sockets are fitted with preassembled and prelubricated o-ring gasket. |

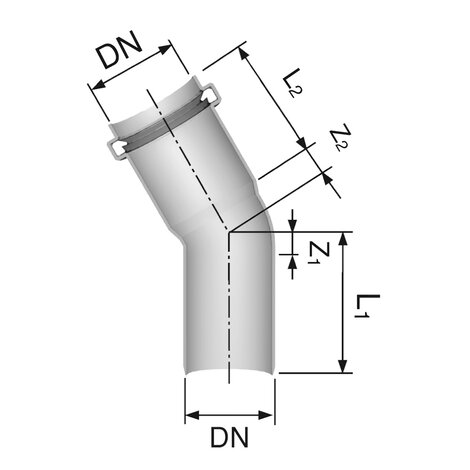

| Reference | tooltipImage | Colour | Z1 (mm) | Z2 (mm) | L1 (mm) | L2 (mm) | DN (mm) |
|---|---|---|---|---|---|---|---|
| 0110411 | - | Red RAL 8023 | 3 | 27 | 48 | 41 | 40 |
| 0781011 | - | Red RAL 8023 | 12 | 20 | 68 | 56 | 100 |
