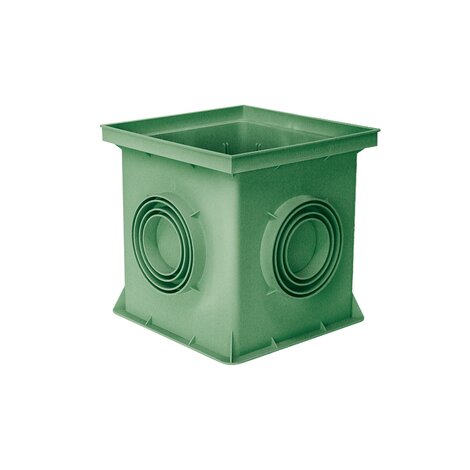

Catch basin PP (green)
GARDEN SURFACE DRAINAGE SYSTEMS, CATCH BASINS, COVERS AND GRILLS
Suitable for the garden. To use as inspection chamber for rain and waste waters
Material: Polypropylene.
Benefits:
- light-weight
- easier to install than concrete chambers
- fully injection moulding
- high durability
- preformed cutouts for insertion of pipes in various sizes on all sides
- smooth rounded angles for a higher shock resistance.
It may be used as a connector block for electric systems.
A concrete floor seating is recommended to prevent subsidence.
| note : | A concrete floor seating is recommended to prevent subsidence |
| Reference | tooltipImage | RAL | A (mm) | B [mm] | H (mm) | H1 (mm) | Dim (mm) | Ø Outlet | Material |
|---|---|---|---|---|---|---|---|---|---|
| Y22200V | - | 6005 | 189 | 161 | 200 | 100 | 200x200 | 63;82;100 | PP |
| Y22300V | - | 6005 | 286 | 253 | 297 | 140 | 300x300 | 82;100;125;140 | PP |
| Y22400V | - | 6005 | 384 | 355 | 397 | 200 | 400x400 | 100;125;140;160;200;250 | PP |
| Y22550V | - | 6005 | 535 | 500 | 520 | 250 | 550x550 | 160;200;250;315 | PP |
