| Reference | characteristics | Box units | measurement | DN | smallA | L1 | L2 | S | z1 | z2 |
|---|---|---|---|---|---|---|---|---|---|---|

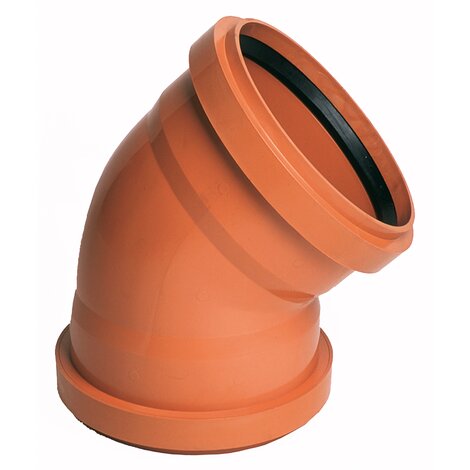

| 032107 | ORANGE | 6 | 160 | 160 | 45° | 73 | 73 | 4.0 | 49 | 49 |
| 032158 | ORANGE | 10 | 200 | 200 | 45° | 85 | 85 | 4.9 | 65 | 65 |
| 032159 | ORANGE | 4 | 250 | 250 | 45° | 101 | 101 | 6.2 | 79 | 79 |
| 032160 | ORANGE | 2 | 315 | 315 | 45° | 116 | 116 | 7.7 | 100 | 100 |
| 032234 | ORANGE | 1 | 400 | 400 | 45º | 133 | 142 | 9.8 | 110 | 125 |
