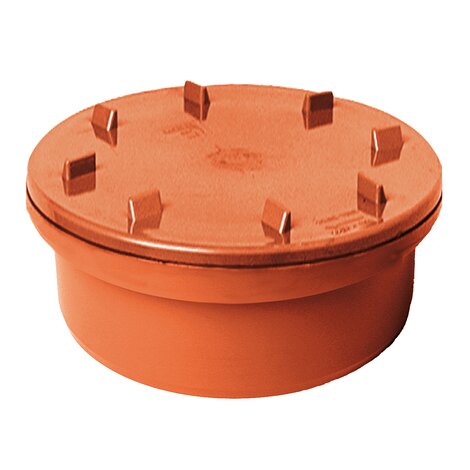

Male cap with register

Go back Data sheet
Male cap with register
Reference characteristics Box units measurement Nominal diameter D1 L1 L2 S
032229 ORANGE 10 160 160 176 60 23 3.1
032230 ORANGE 6 200 200 216 80 23 3.4
032231 ORANGE 1 250 250 262 90 18 6.1
032232 ORANGE 1 315 315 354 93 22 7.7
