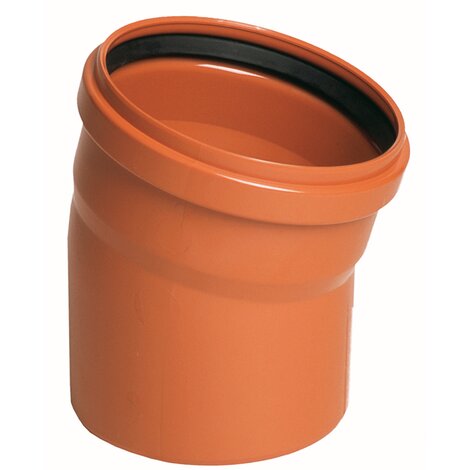

| Reference | characteristics | Box units | measurement | DN | smallA | L1 | L2 | S | z1 | z2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 032099 | ORANGE | 6 | 160 | 160 | 15° | 82 | 72 | 4.0 | 14 | 28 |
| 032100 | ORANGE | 5 | 200 | 200 | 15° | 100 | 86 | 4.9 | 18 | 35 |
| 032101 | ORANGE | 2 | 250 | 250 | 15° | 134 | 103 | 6.2 | 19 | 40 |
| 032102 | ORANGE | 1 | 315 | 315 | 15° | 144 | 120 | 7.7 | 23 | 52 |
| 032125 | ORANGE | 1 | 400 | 400 | 15° | 175 | 175 | 9.8 | 83 | 80 |
| 032126 | ORANGE | 1 | 500 | 500 | 15° | 160 | 250 | 12.2 | 150 | 160 |
