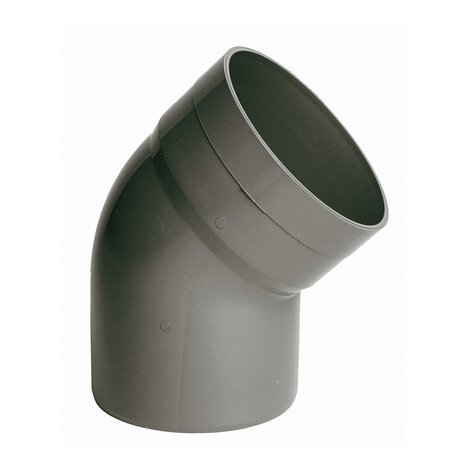

| Reference | characteristics | Box units | measurement | DN | smallA | L1 | L2 | S | z1 | z2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 033001 | Grey | 16 | 160 | 160 | 45° | 80 | 66 | 4.0 | 37 | 51 |
| 033002 | Grey | 6 | 200 | 200 | 45° | 100 | 84 | 4.9 | 46 | 64 |
| 033003 | Grey | 4 | 250 | 250 | 45° | 125 | 96 | 6.2 | 58 | 79 |
| 033004 | Grey | 2 | 315 | 315 | 45° | 144 | 118 | 7.7 | 73 | 100 |
| 033005 | Grey | 1 | 400 | 400 | 45° | 165 | 140 | 9.8 | 91 | 126 |
| 033080 | Grey | 1 | 500 | 500 | 45° | 160 | 150 | 9.8 | 103 | 152 |
