ProtectaFlex Detect Solvent welding PVC-U fittings

Solvent PVC fittings for RPVC and LDPE pipe

We recommend to connect ProtectaFlex Detect solution exclusively with the fittings specified. The use of unauthorized and different components may compromise the system warranty.

Solvent welding PVCU fittings are available for all sizes for on-site installation using a steel collar.

Go back Data sheet
render delle due opzioni di connessione in pvc-u del sistema ProtectaFlex Detect

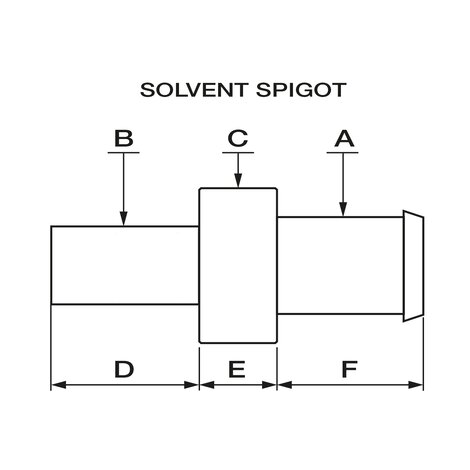

disegno tecnico del raccordo a incollaggio in PVC-U del sistema ProtectaFlex
render delle due opzioni di connessione in pvc-u del sistema ProtectaFlex Detect
disegno tecnico del raccordo a incollaggio in PVC-U del sistema ProtectaFlex
Part no. system Category family series OD - A x B C ID (mm) D E F Inner pipe material
PFXAIV060200 Double containment Pressure Fittings ProtectaFlex detect PVC-U Fittings for ProtectaFlex Detect pipes in RPVC and LDPE 6,3 x 20 25 3,5 20 15 30 PVC-U
PFXAIV100200 Double containment Pressure Fittings ProtectaFlex detect PVC-U Fittings for ProtectaFlex Detect pipes in RPVC and LDPE 10 x 20 30 6,5 20 15 30 PVC-U
PFXAIV125200 Double containment Pressure Fittings ProtectaFlex detect PVC-U Fittings for ProtectaFlex Detect pipes in RPVC and LDPE 12,5 x 20 30 8,5 20 15 30 PVC-U
PFXAIV190250 Double containment Pressure Fittings ProtectaFlex detect PVC-U Fittings for ProtectaFlex Detect pipes in RPVC and LDPE 19 x 25 40 13 25 15 30 PVC-U
PFXAIV250320 Double containment Pressure Fittings ProtectaFlex detect PVC-U Fittings for ProtectaFlex Detect pipes in RPVC and LDPE 25 x 32 40 18,5 25 20 40 PVC-U
PFXAIV320400 Double containment Pressure Fittings ProtectaFlex detect PVC-U Fittings for ProtectaFlex Detect pipes in RPVC and LDPE 32 x 40 50 22 30 20 40 PVC-U
PFXAIV380500 Double containment Pressure Fittings ProtectaFlex detect PVC-U Fittings for ProtectaFlex Detect pipes in RPVC and LDPE 38 x 50 50 26 35 20 45 PVC-U
PFXAIV500630 Double containment Pressure Fittings ProtectaFlex detect PVC-U Fittings for ProtectaFlex Detect pipes in RPVC and LDPE 50 x 63 70 38 40 20 45 PVC-U
