ProtectaFlex Detect Threaded PTFE fittings
Threaded PTFE fittings for PTFE pipe
We recommend to connect ProtectaFlex Detect solution exclusively with the fittings specified. The use of unauthorized and different components may compromise the system warranty.

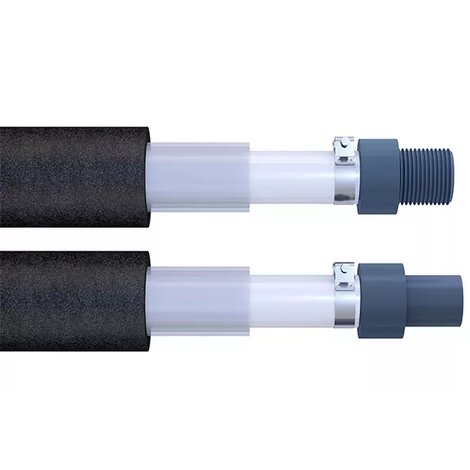

BSP threaded PTFE fittings are available for all sizes for on-site installation using a steel collar.

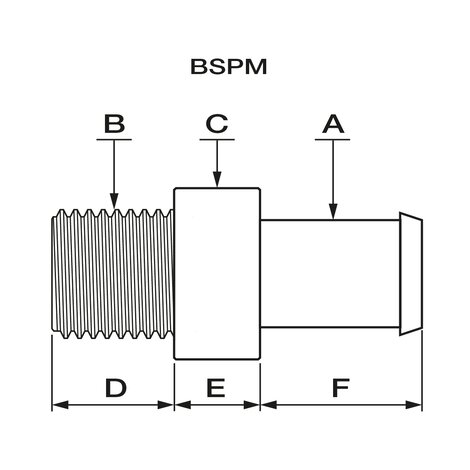

| Part no. | system | Category | family | series | OD - A x B | C | ID (mm) | D | E | F | Inner pipe material |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PFXAFT063050 | Double containment | Pressure Fittings | ProtectaFlex detect | PTFE Fittings for double containment PTFE pipe | 6,3 x 1/2" | 25 | 3,5 | 20 | 15 | 30 | PTFE |
| PFXAFT100050 | Double containment | Pressure Fittings | ProtectaFlex detect | PTFE Fittings for double containment PTFE pipe | 10 x 1/2" | 30 | 6,5 | 20 | 15 | 30 | PTFE |
| PFXAFT125050 | Double containment | Pressure Fittings | ProtectaFlex detect | PTFE Fittings for double containment PTFE pipe | 12,5 x 1/2" | 30 | 8,5 | 20 | 15 | 30 | PTFE |
| PFXAFT190075 | Double containment | Pressure Fittings | ProtectaFlex detect | PTFE Fittings for double containment PTFE pipe | 19 x 3/4" | 40 | 13 | 25 | 15 | 30 | PTFE |
| PFXAFT250100 | Double containment | Pressure Fittings | ProtectaFlex detect | PTFE Fittings for double containment PTFE pipe | 25 x 1" | 40 | 18,5 | 30 | 20 | 40 | PTFE |
