QR4 - Serrated stub

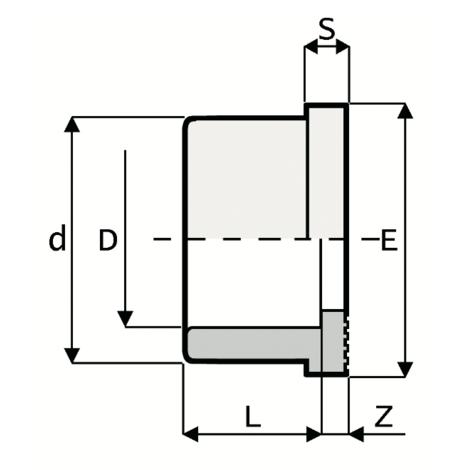

Serrated stub according to DIN 8063 PN10/16 for flat gasket, socket BS for solvent welding.
| Part no. | Name | dimensionalTable | D | PN | L | Z | d | S | E | g |
|---|---|---|---|---|---|---|---|---|---|---|
| 1RQR411000 | QR4 - Serrated stub | - | 4" | 16 | 61 | 5 | 131 | 12 | 150 | 439 |
| 1RQR417000NL | QR4 - Serrated stub | - | 6" | 16 | 86 | 5 | 188 | 16 | 216 | 1250 |
| 1RQR432000 | QR4 - Serrated stub | - | 1" | 16 | 22 | 3 | 41 | 7 | 50 | 26 |
| 1RQR450000 | QR4 - Serrated stub | - | 1 1/2" | 16 | 31 | 4 | 61 | 8 | 73 | 63 |
| 1RQR463000 | QR4 - Serrated stub | - | 2" | 16 | 38 | 4 | 76 | 9 | 90 | 112 |
| 1RQR490000 | QR4 - Serrated stub | - | 3" | 16 | 51 | 5 | 108 | 11 | 125 | 273 |
