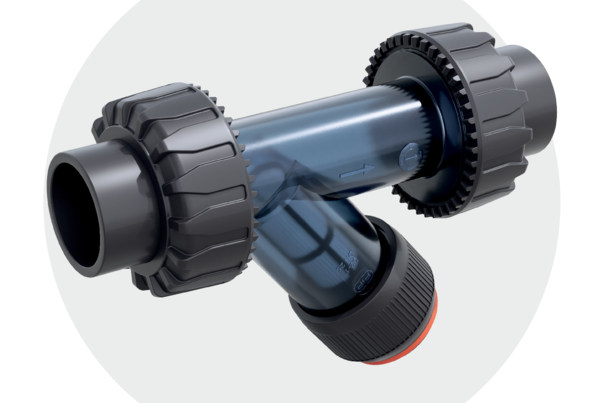

RVOV-RVOT D 20 ÷ 63 - Sediment strainer DN 10:100
RVOV PVC-U rigid - RVOT PVC-U transparent.
Sediment strainer with fixed flanges, drilled PN10/16.
The RV Sediment strainer limits the passage of any solid particles present in the fluid by means of a strainer.
| Reference | tooltipImage | system | Category | family | series | d | DN | PN RVOV | PN RVOT | A max | B | F | f | H | Fig. | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RVOV020E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 20 | 15 | 16 | 10 | 125 | 72 | 65 | 14 | 130 | A | 260 |
| RVOT050E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 50 | 40 | 16 | 10 | 210 | 120 | 110 | 18 | 200 | A | 1170 |
| RVOT040E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 40 | 32 | 16 | 10 | 190 | 111 | 100 | 18 | 180 | A | 850 |
| RVOT032E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 32 | 25 | 16 | 10 | 165 | 95 | 85 | 14 | 160 | A | 560 |
| RVOT025E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 25 | 20 | 16 | 10 | 145 | 84 | 75 | 14 | 150 | A | 395 |
| RVOT020E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 20 | 15 | 16 | 10 | 125 | 72 | 65 | 14 | 130 | A | 260 |
| RVOV063E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 63 | 50 | 16 | 10 | 240 | 139 | 125 | 18 | 230 | A | 1760 |
| RVOV050E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 50 | 40 | 16 | 10 | 210 | 120 | 110 | 18 | 200 | A | 1170 |
| RVOV040E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 40 | 32 | 16 | 10 | 190 | 111 | 100 | 18 | 180 | A | 850 |
| RVOV032E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 32 | 25 | 16 | 10 | 165 | 95 | 85 | 14 | 160 | A | 560 |
| RVOV025E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 25 | 20 | 16 | 10 | 145 | 84 | 75 | 14 | 150 | A | 395 |
| RVOT063E | - | PVC-U system | Manual valves | Auxiliary valves | RV DN 10÷100 | 63 | 50 | 16 | 10 | 240 | 139 | 125 | 18 | 230 | A | 1760 |
- Connection system for solvent weld, threaded and flanged joints
- Strainer mounted on an easily removed support that facilitates the cleaning or replacement
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
