TI4 - Tee 90° equal

Tee 90° equal, socket for solvent welding BS series.

Go back

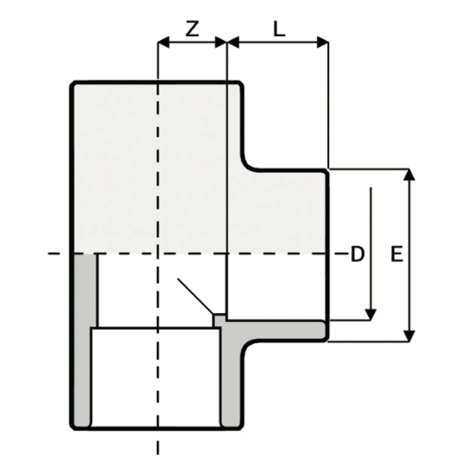

TI4 - Tee 90° equal
Reference Name dimensionalTable system Category family series Material D PN L Z E g
1RTI411000 TI4 - Tee 90° equal - PVC-U system Pressure Fittings BS Fittings Tee fittings PVC-U 4" 16 63 59 133 1480
1RTI417000 TI4 - Tee 90° equal - PVC-U system Pressure Fittings BS Fittings Tee fittings PVC-U 6" 16 86 82 186 3855
1RTI420000NL TI4 - Tee 90° equal - PVC-U system Pressure Fittings BS Fittings Tee fittings PVC-U 1/2" 16 17 11 27 26
1RTI425000NL TI4 - Tee 90° equal - PVC-U system Pressure Fittings BS Fittings Tee fittings PVC-U 3/4" 16 20 14 33 30
1RTI432000NL TI4 - Tee 90° equal - PVC-U system Pressure Fittings BS Fittings Tee fittings PVC-U 1" 16 23 17 41 55
1RTI440000NL TI4 - Tee 90° equal - PVC-U system Pressure Fittings BS Fittings Tee fittings PVC-U 1 1/4” 16 26 22 50 90
1RTI450000NL TI4 - Tee 90° equal - PVC-U system Pressure Fittings BS Fittings Tee fittings PVC-U 1 1/2" 16 31 27 61 257
1RTI463000NL TI4 - Tee 90° equal - PVC-U system Pressure Fittings BS Fittings Tee fittings PVC-U 2" 16 38 34 76 495
1RTI490000NL TI4 - Tee 90° equal - PVC-U system Pressure Fittings BS Fittings Tee fittings PVC-U 3" 16 51 48 108 970
