VROM - Check valve DN 15:80

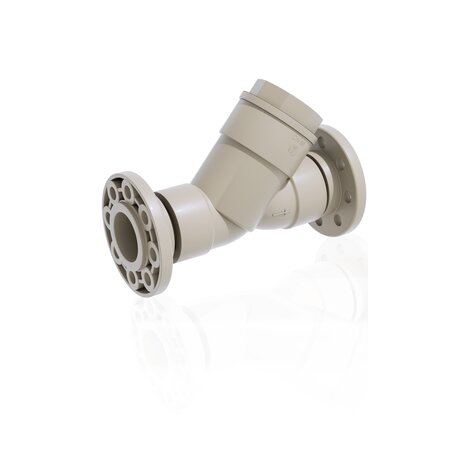

Check valve with steel core backing ring, PP/FRP coated, drilled EN/ISO/DIN PN10/16.

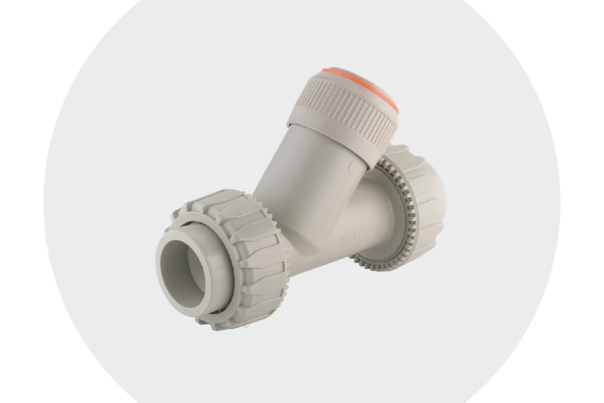

The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
Need help to choose the ideal FIP valve for your needs? Try our new Valve Configurator that will guide you through the technical and functional characteristics of our wide range of products!
EPDM

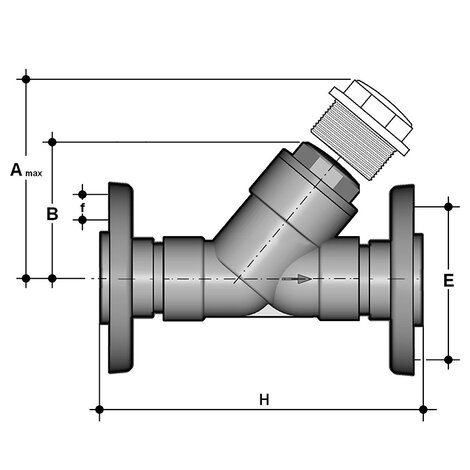

| Reference | system | Category | family | series | d | DN | PN | A max | B | F | f | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VROM075E | PP-H system | Manual valves | Auxiliary valves | VR DN 10÷100 | 75 | 65 | 6 | 300 | 179 | 145 | 18 | 356 | 5990 |
| VROM090E | PP-H system | Manual valves | Auxiliary valves | VR DN 10÷100 | 90 | 80 | 4 | 325 | 192 | 160 | 18 | 404 | 7230 |
FKM
| Reference | system | Category | family | series | d | DN | PN | A max | B | F | f | H | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VROM075F | PP-H system | Manual valves | Auxiliary valves | VR DN 10÷100 | 75 | 65 | 6 | 300 | 179 | 145 | 18 | 356 | 5990 |
| VROM090F | PP-H system | Manual valves | Auxiliary valves | VR DN 10÷100 | 90 | 80 | 4 | 325 | 192 | 160 | 18 | 404 | 7230 |
- Connection system for weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
