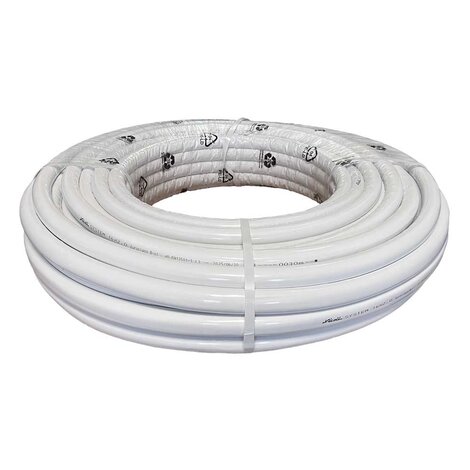

White Insulated Multilayer PE‑RT II Pipe in Coils Toroidal Packaging
FLUXO MULTILAYER SYSTEM FOR HOT AND COLD WATER SUPPLY
The structure of FLUXO‑Z combines inner and outer layers made of next‑generation polymer with a central butt‑welded aluminium core, offering an optimal balance between flexibility and dimensional stability.
The pipe ensures reliable performance in continuous operation up to 95 °C (Classes 1, 2 and 4 – EN ISO 21003), limiting thermal expansion and ensuring long‑term system durability.
Second‑generation PE‑RT II is an advanced material designed to withstand high thermal and chemical stress without cross‑linking.
The use of these polymers enhances recyclability at end of life and supports circular‑economy models based on reuse and waste reduction.
| note : | System certifications: The Fluxo® system has been tested and certified by significant certifying bodies such as: KIWA (Netherlands) and KQ (France) valid for the range included in the Avis Tecnique 14/15-1828 in compliance with the UNI EN ISO 21003 Standard ensuring duration, reliability and safety. |
| Reference | Ø (mm) | S (mm) | thicknessInsulation | L (mt) |
|---|---|---|---|---|
| M04050R | 16 | 2.0 | 6 | 50 |
| M04150R | 20 | 2.0 | 6 | 50 |
| M04260R | 26 | 3.0 | 10 | 50 |
| M04320R | 32 | 3.0 | 10 | 25 |
Certificates
Downloads
get_app
get_app
Technical Datasheet
