1V335 - Single union ball valve
Single union ball valve with compression fittings for irrigation and water supply systems.
Single union grey PVC ball valve, provided with compression fittings to connect PE ISO metric pipes to both sides, with free ball support.
EPDM seals.
PE ball seats.
Astore 335 is a single union ball valve with compression fittings for irrigation and water supply systems, with fixed ball support.
EPDM

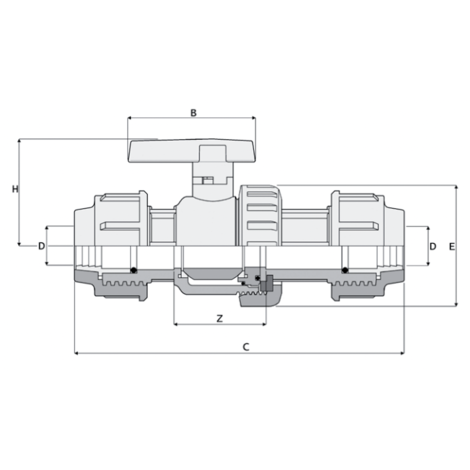

| Reference | Name | Product description | product.detail.attribute.technicalFeatures | dimensionalTable | Main category | Subcategory | Sub sub category | system | Category | family | series | Material | D | PN | DN | C | E | H | B | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1V33520000W | EPDM | Astore 335 is a single union ball valve with compression fittings for irrigation and water supply systems, with fixed ball support. | Equipped with compression fittings for connection with PE pipes metric series on both sides. Construction: Single union grey PVC ball valve with compression fittings, with free ball support Size range: DN 15 ÷ 25 Nominal pressure: PN16 with water at 20°C Temperature range: 0 °C ÷ 60 °C Coupling standards: Compression fittings: ISO 17885 Valve material: PVC-U Seal material: EPDM (O-Ring) PE (ball seats) Control options: Manual control | - | PVC-U system | Ball valves | TKD DN 10÷50 | PVC-U system | Manual valves | Ball valves | TKD DN 10÷50 | PVC-U | 20 | 16 | 15 | 148 | 50 | 50 | 57 | 67 | 156 |
| 1V33525000W | EPDM | Astore 335 is a single union ball valve with compression fittings for irrigation and water supply systems, with fixed ball support. | Equipped with compression fittings for connection with PE pipes metric series on both sides. Construction: Single union grey PVC ball valve with compression fittings, with free ball support Size range: DN 15 ÷ 25 Nominal pressure: PN16 with water at 20°C Temperature range: 0 °C ÷ 60 °C Coupling standards: Compression fittings: ISO 17885 Valve material: PVC-U Seal material: EPDM (O-Ring) PE (ball seats) Control options: Manual control | - | PVC-U system | Ball valves | TKD DN 10÷50 | PVC-U system | Manual valves | Ball valves | TKD DN 10÷50 | PVC-U | 25 | 16 | 20 | 165 | 59 | 55 | 66 | 77 | 235 |
| 1V33532000W | EPDM | Astore 335 is a single union ball valve with compression fittings for irrigation and water supply systems, with fixed ball support. | Equipped with compression fittings for connection with PE pipes metric series on both sides. Construction: Single union grey PVC ball valve with compression fittings, with free ball support Size range: DN 15 ÷ 25 Nominal pressure: PN16 with water at 20°C Temperature range: 0 °C ÷ 60 °C Coupling standards: Compression fittings: ISO 17885 Valve material: PVC-U Seal material: EPDM (O-Ring) PE (ball seats) Control options: Manual control | - | PVC-U system | Ball valves | TKD DN 10÷50 | PVC-U system | Manual valves | Ball valves | TKD DN 10÷50 | PVC-U | 32 | 16 | 25 | 188 | 68 | 63 | 75 | 83 | 365 |
- Equipped with compression fittings for connection with PE pipes metric series on both sides.
- Construction: Single union grey PVC ball valve with compression fittings, with free ball support
- Size range: DN 15 ÷ 25
- Nominal pressure:
- PN16 with water at 20°C
- Temperature range: 0 °C ÷ 60 °C
- Coupling standards:
- Compression fittings: ISO 17885
- Valve material: PVC-U
- Seal material:
- EPDM (O-Ring)
- PE (ball seats)
- Control options: Manual control
