1V800 - Butterfly valve

Butterfly valve for water supply systems.

Grey PVC butterfly valve.
Handle manual control.
EPDM liner.
Zinc plated steel stem.

Astore 800 is a butterfly valve for water supply systems.

Go back Data sheet
1V800 - Butterfly valve

EPDM

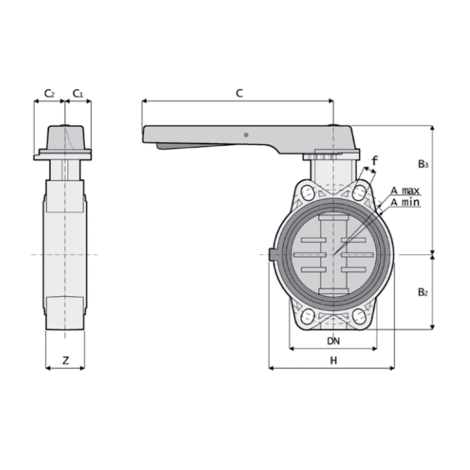

Reference system Category family series D PN DN B2 B3 C C1 C2 H Z A min A max F g n° holes Torque in N/m
1V80011000W PVC-U system Manual valves Ball valves TKD DN 10÷50 110 10 100 105 196 250 45 45 150 56 165 190 19 1990 4 45
1V80015000W PVC-U system Manual valves Ball valves TKD DN 10÷50 140 10 125 121 215 335 45 45 185 64 204 215 23 3030 4 60
1V80017000W PVC-U system Manual valves Ball valves TKD DN 10÷50 160 10 150 132 229 335 45 45 210 70 230 242 23 3730 4 90
1V80023000 PVC-U system Manual valves Ball valves TKD DN 10÷50 225 10 200 161 309 425 65 82 325 71 280 298 23 8240 8 140
1V80050000W PVC-U system Manual valves Ball valves TKD DN 10÷50 50 16 40 60 136 175 45 42 132 33 93 109 19 827 4 8
1V80063000W PVC-U system Manual valves Ball valves TKD DN 10÷50 63 16 50 70 143 175 45 42 147 43 108 124 19 1012 4 10
1V80075000W PVC-U system Manual valves Ball valves TKD DN 10÷50 75 10 65 80 168 175 45 45 165 46 128 144 19 1420 4 12
1V80090000W PVC-U system Manual valves Ball valves TKD DN 10÷50 90 10 80 90 182 250 45 45 130 49 145 159 19 1640 4 25
  • Construction: Grey PVC butterfly valve
  • Size range: DN 40÷300
  • Nominal pressure:
    • DN 40÷50: PN16 with water at 20°C
    • DN 65÷200: PN10 with water at 20°C
    • DN 250: PN6 with water at 20°C
    • DN 300: PN4 with water at 20°C
  • Temperature range: 0 °C ÷ 60 °C
  • Coupling standards:
    • Flanging system: EN ISO 1452, EN ISO 15493, DIN 2501, ISO 7005-1, EN 1092-1, ANSI B16.5 Cl.150
  • Valve material: PVC-U
  • Shaft material: Zinc plated steel
  • Seal material:
    • EPDM
  • Control options: Manual control (handle: DN 40÷200; gear box: DN 250÷300)
