AP3 - Wall entry
PVC pressure fittings.
Wall entry with female thread.
PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general.

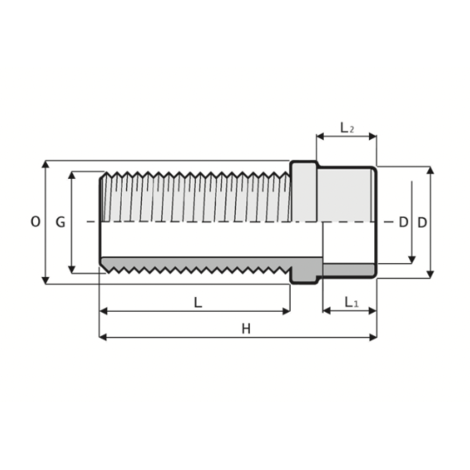

| Part no. | Name | Product description | product.detail.attribute.technicalFeatures | dimensionalTable | Main category | Subcategory | Sub sub category | system | Category | family | series | Material | product.detail.attribute.D[5:1] x D x G | PN | L | L1 | L2 |
H | product.detail.attribute.O | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1RAP340F00 | AP3 - Wall entry | PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. | Size range: d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 | - | PVC-U system | Ball valves | TKD DN 10÷50 | PVC-U system | Pressure Fittings | ISO-BSP Fittings | Special parts | PVC-U | 40 x 50 x 1"1/2 | 16 | 106 | 27 | 31 | 148 | 55 | 150 |
| 1RAP350G00 | AP3 - Wall entry | PVC (polyvinyl chloride) fittings for use in pressurised Irrigation Systems, water adduction, chemical installations and for water treatment in general. | Size range: d 16 x 3/8" ÷ d 110 x 4" Nominal pressure: Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6" BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4" Temperature range: 0 °C ÷ 60 °C Reference standards: ISO 7-1, ISO 228-1 Fitting material: PVC-U Seal material: Gaskets in EPDM, on request FKM Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430 | - | PVC-U system | Ball valves | TKD DN 10÷50 | PVC-U system | Pressure Fittings | ISO-BSP Fittings | Special parts | PVC-U | 50 x 63 x 2" | 16 | 100 | 32 | 38 | 148 | 68 | 220 |
- Size range:
-
- d 16 x 3/8" ÷ d 110 x 4"
- Nominal pressure:
- Imperial BS Series: Class E with water at 20°C up to d 4", Class D up to 6"
- BS/BSP transition fittings: Class E up to 2", Class D from 2"1/2 to 4"
- Temperature range: 0 °C ÷ 60 °C
- Reference standards:
- ISO 7-1, ISO 228-1
- Fitting material: PVC-U
- Seal material:
- Gaskets in EPDM, on request FKM
- Reinforcing rings (TM3, GM3, MM3, RM3) in stainless steel AISI 430
Downloads
get_app
get_app
ASTORE Technical Catalogue
