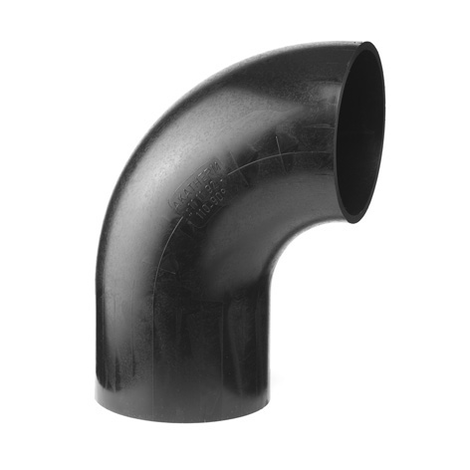

Bend 90° with long side

Electrofusable at one side.

Name :	Bend 90° with long side
Subcategory :	Bends

Go back Data sheet

Reference	Name	d1	s	Kg	l1	l2	r
110492	Bend 90° with long side	40	40	0,044	93	43	40
110592	Bend 90° with long side	50	50	0,072	103	53	50
110692	Bend 90° with long side	63	65	0,102	130	66	65
110792	Bend 90° with long side	75	75	0,136	140	78	75
110992	Bend 90° with long side	90	90	0,22	153	93	90
111196	Bend 90° with long side	110	100	0,3759	270	100	100
111292	Bend 90° with long side	125	125	0,52	190	128	125
115692	Bend 90° with long side	56	56	0,084	120	59	56
