CLV - End cap

End cap with solvent weld socket.

Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.
Immagine del raccordo per incollaggio CLV calotta
Disegno tecnico del raccordo per incollaggio - calotta CIV
Immagine del raccordo per incollaggio CLV calotta
Disegno tecnico del raccordo per incollaggio - calotta CIV
Reference system Category family division subfamily d PN Class E L Z g
CLV012 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 1/2" 15 E 27 16,5 2 13
CLV034 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 3/4" 15 E 33 19,5 2 15
CLV100 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 1" 15 E 41 22,5 2 36
CLV114 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 1"1/4 15 E 50 26 3 58
CLV112 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 1"1/2 15 E 61 31 3 118
CLV200 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 2" 15 E 76 38 3 206
CIV075 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 2"1/2 15 E 90 44 4 250
CLV300 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 3" 15 E 108 50,5 5,5 420
CLV400 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 4" 15 E 131 63 5 680

Downloads

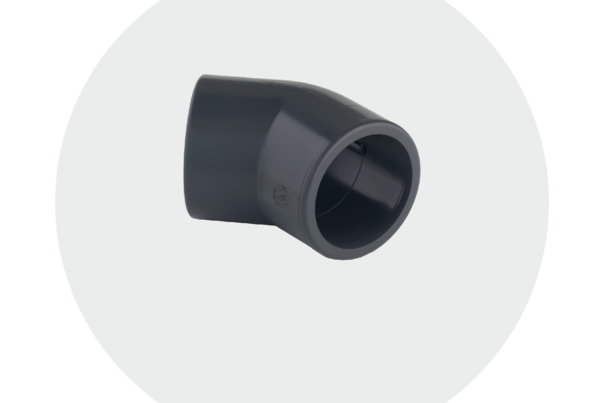

BS FITTINGS PVC-U Technical Catalogue
en get_app it get_app
2.8 MB, PDF
BS FITTINGS PVC-U Technical Catalogue
