DLV Fig.B

Fittings according to British standard - reducers.

Reducing bush with solvent weld spigot (d) and solvent weld socket (d1 reduced) (fig. B).

Series of fittings for pipes conveying fluids under pressure with solvent weld and threaded joints according to British Standard.

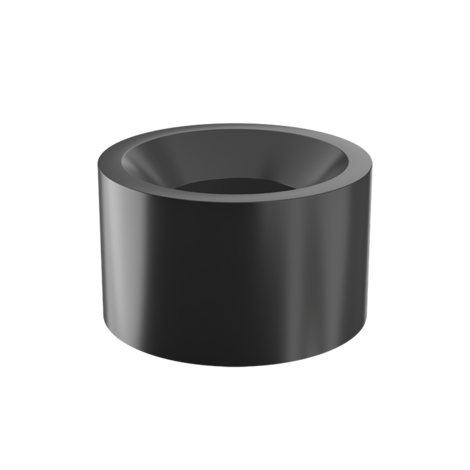

Immagine del raccordo per incollaggio - riduzioni DLV (Fig. B)

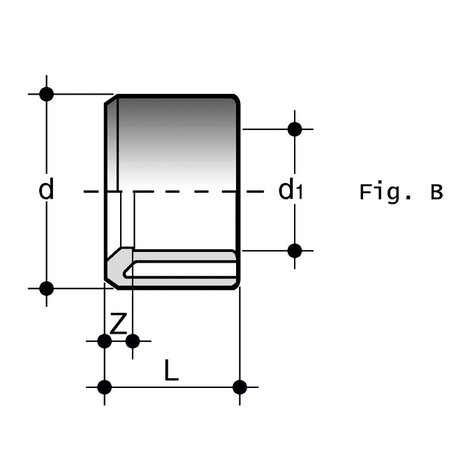

Disegno tecnico del raccordo per incollaggio - riduzioni DIV fig. B
Immagine del raccordo per incollaggio - riduzioni DLV (Fig. B)
Disegno tecnico del raccordo per incollaggio - riduzioni DIV fig. B
Reference system Category family division subfamily d x d1 PN Class L Z g
DLV112034 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 1"1/2 x 3/4" 15 E 30 10 40
DLV200100 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 2" x 1" 15 E 36 7 50
DLV200112 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 2" x 1"1/2 15 E 38 7 50
DLV300112 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 3" x 1"1/2 15 E 50,5 20,5 200
DLV300200 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 3" x 2" 15 E 51 13 167
DLV400200 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 4" x 2" 15 E 63 27 370
DLV600400 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 6" x 4" 12 D 90 27 972
DLV800600 PVC-U system Pressure Fittings Sistema PVC-U Sistema PVC-U Tubo y accesorios PVC-U presión 8" x 6" 12 D 115,5 26,5 1400

Downloads

BS FITTINGS PVC-U Technical Catalogue
en get_app it get_app
2.8 MB, PDF
BS FITTINGS PVC-U Technical Catalogue
