| Reference | Name | d1 | Kg | l1 | noteText | noteEnum | |
|---|---|---|---|---|---|---|---|

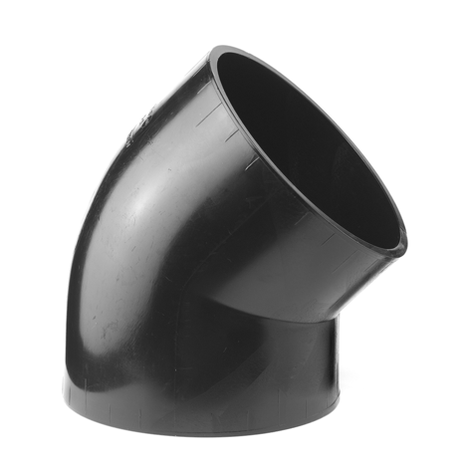

| 120445 | Elbow 45° | 40 | 0,03 | 40 | wall thickness e according to S12,5 | - | |
| 120545 | Elbow 45° | 50 | 0,041 | 45 | wall thickness e according to S12,5 | - | |
| 120645 | Elbow 45° | 63 | 0,06 | 50 | wall thickness e according to S12,5 | - | |
| 120745 | Elbow 45° | 75 | 0,069 | 50 | wall thickness e according to S12,5 | - | |
| 120945 | Elbow 45° | 90 | 0,109 | 55 | wall thickness e according to S12,5 | - | |
| 121145 | Elbow 45° | 110 | 0,171 | 60 | wall thickness e according to S12,5 | - | |
| 121245 | Elbow 45° | 125 | 0,239 | 65 | wall thickness e according to S12,5 | - | |
| 121645 | Elbow 45° | 160 | 0,425 | 69 | wall thickness e according to S12,5 | - | |
| 122045 | Elbow 45° | 200 | 1,272 | 173 | wall thickness e according to S12,5 | - | |
| 122545 | Elbow 45° | 250 | 2,7 | 182 | wall thickness e according to S12,5 | 1 | 1 |
| 123145 | Elbow 45° | 315 | 4,3 | 195 | wall thickness e according to S12,5 | 1 | 1 |
| 125645 | Elbow 45° | 56 | 0,047 | 45 | wall thickness e according to S12,5 | - |
1 wall thickness e according to S12,5
