Single union ball valve with compression fittings for irrigation and water supply systems.
Single union grey PVC ball valve, BSP female threaded socket on nut side and compression fitting for connection with PE pipes on valve body side, with free ball support.
EPDM seals.
PE ball seats.
Astore 305 is a single union ball valve with compression fitting for irrigation and water supply systems, with free ball support.
Main features:
- Version available is BSP female threaded socket on nut side and compression fitting for connection with PE pipes on valve body side.
- Construction: Single union grey PVC ball valve, with free ball support
- Size range: DN 10 ÷ 50
- Nominal pressure:
- PN16 with water at 20°C
- Temperature range: 0 °C ÷ 60 °C
- Coupling standards:
- Thread: UNI ISO 228-1, ISO 7-1
- Compression fittings: ISO 17885
- Valve material: PVC-U
- Seal material:
- EPDM (O-Ring)
- PE (ball seats)
- Control options: Manual control

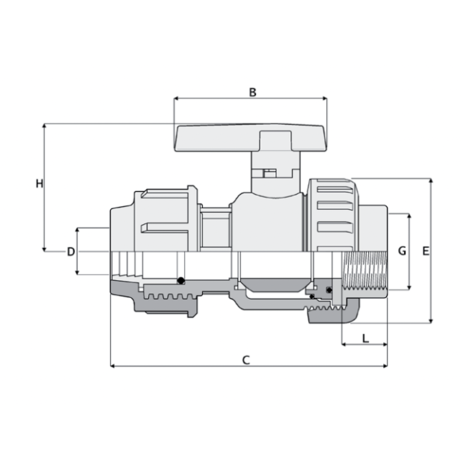

| Reference | system | Category | family | series | product.detail.attribute.DxG | PN | DN | L | C | E | H | B | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1V30516000L | PVC-U system | Manual valves | Ball valves | TKD DN 10÷50 | 16 x 3/8" | 16 | 10 | 13 | 96 | 50 | 50 | 57 | 115 |
| 1V30520000L | PVC-U system | Manual valves | Ball valves | TKD DN 10÷50 | 20 x 1/2" | 16 | 15 | 17 | 99 | 50 | 50 | 57 | 130 |
| 1V30525000L | PVC-U system | Manual valves | Ball valves | TKD DN 10÷50 | 25 x 3/4" | 16 | 20 | 19 | 115 | 59 | 55 | 66 | 195 |
| 1V30532000L | PVC-U system | Manual valves | Ball valves | TKD DN 10÷50 | 32 x 1" | 16 | 25 | 22 | 131 | 68 | 63 | 75 | 300 |
| 1V30540000L | PVC-U system | Manual valves | Ball valves | TKD DN 10÷50 | 40 x 1"1/4 | 16 | 32 | 24 | 158 | 80 | 76 | 90 | 455 |
