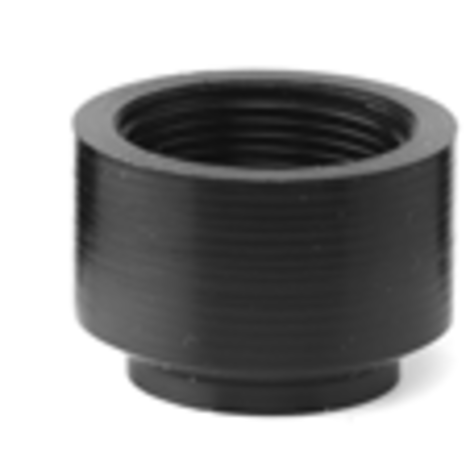

Female thread adaptor short
Butt-weld only
| Name : | Female thread adaptor short |
| Subcategory : | Screw couplers |

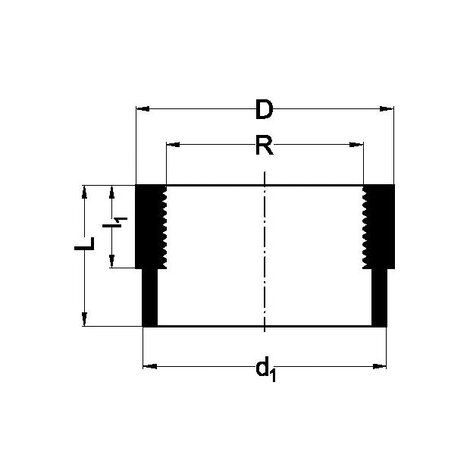

| Reference | Name | Kg | D | Length | l1 | R | d1 |
|---|---|---|---|---|---|---|---|
| 91 04 78 | Female thread adaptor short | 0,022 | 40 | 38 | 30 | ½" | - |
| 910479 | Female thread adaptor short | 0,04 | - | 38 | - | ¾" | 40 |
| 910480 | Female thread adaptor short | 0,03 | - | 38 | - | 1" | 40 |
| 910481 | Female thread adaptor short | 0,03 | - | 38 | - | 1¼" | 40 |
| 910580 | Female thread adaptor short | 0,03 | - | 38 | - | 1" | 50 |
| 910581 | Female thread adaptor short | 0,03 | - | 38 | - | 1¼" | 50 |
| 910582 | Female thread adaptor short | 0,04 | - | 38 | - | 1½" | 50 |
| 910682 | Female thread adaptor short | 0,04 | - | 38 | - | 1½" | 63 |
| 910683 | Female thread adaptor short | 0,05 | - | 38 | - | 2" | 63 |
