GFV
Threaded fittings - equal socket.

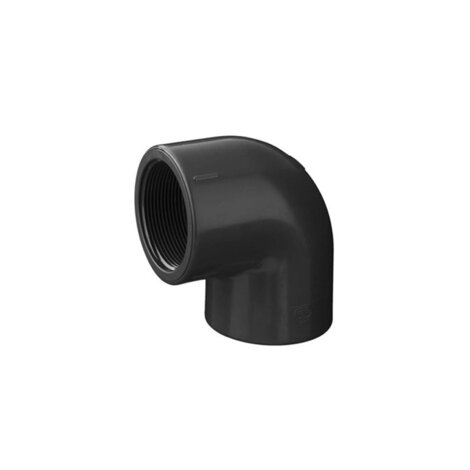

90° elbow with BSP threaded female ends.
Series of fittings for pipes conveying fluids under pressure with threaded joints.

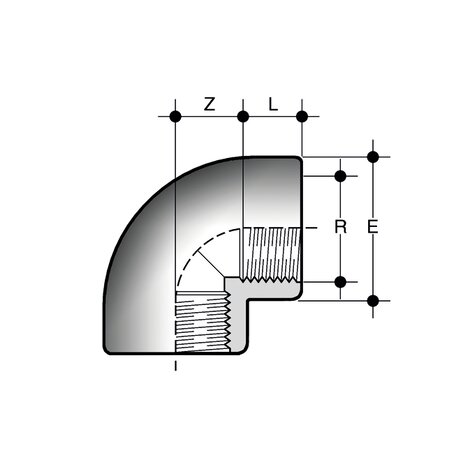

| Reference | tooltipImage | system | Category | family | R | PN | E | L | Z | g |
|---|---|---|---|---|---|---|---|---|---|---|
| GFV038 | - | PVC-U system | Pressure Fittings | BSP Fittings | 3/8" | 16 | 23,5 | 11,4 | 13 | 16 |
| GFV300 | - | PVC-U system | Pressure Fittings | BSP Fittings | 3" | 16 | 108 | 33,3 | 66 | 835 |
| GFV212 | - | PVC-U system | Pressure Fittings | BSP Fittings | 2"1/2 | 16 | 91 | 30,2 | 55 | 450 |
| GFV200 | - | PVC-U system | Pressure Fittings | BSP Fittings | 2" | 16 | 76 | 25,7 | 46 | 350 |
| GFV112 | - | PVC-U system | Pressure Fittings | BSP Fittings | 1"1/2 | 16 | 61 | 21,4 | 36 | 185 |
| GFV114 | - | PVC-U system | Pressure Fittings | BSP Fittings | 1"1/4 | 16 | 54 | 21,4 | 27 | 130 |
| GFV100 | - | PVC-U system | Pressure Fittings | BSP Fittings | 1" | 16 | 43 | 19,1 | 21 | 72 |
| GFV034 | - | PVC-U system | Pressure Fittings | BSP Fittings | 3/4" | 16 | 35 | 16,3 | 17 | 40 |
| GFV012 | - | PVC-U system | Pressure Fittings | BSP Fittings | 1/2" | 16 | 28,5 | 15 | 13 | 24 |
| GFV400 | - | PVC-U system | Pressure Fittings | BSP Fittings | 4" | 16 | 130 | 39,3 | 80 | 1135 |
