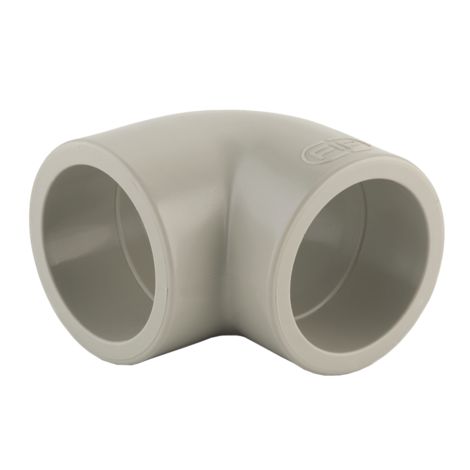

GIM - 90° elbow

90° elbow for socket welding.

Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

Reference	system	Category	family	d	DN	PN	E	H	Z	g
GIM020	PP-H system	Pressure Fittings	ISO-UNI Fittings Socket Welding	20	15	10	28	28	13	14
GIM025	PP-H system	Pressure Fittings	ISO-UNI Fittings Socket Welding	25	20	10	34	32	16	23
GIM032	PP-H system	Pressure Fittings	ISO-UNI Fittings Socket Welding	32	25	10	42	37	20	37
GIM040	PP-H system	Pressure Fittings	ISO-UNI Fittings Socket Welding	40	32	10	52	43	22	64
GIM050	PP-H system	Pressure Fittings	ISO-UNI Fittings Socket Welding	50	40	10	64	51	28	105
GIM063	PP-H system	Pressure Fittings	ISO-UNI Fittings Socket Welding	63	50	10	79	61	34	180
GIM075	PP-H system	Pressure Fittings	ISO-UNI Fittings Socket Welding	75	65	10	93	73	42	300
GIM090	PP-H system	Pressure Fittings	ISO-UNI Fittings Socket Welding	90	80	10	111	85	49	455
GIM110	PP-H system	Pressure Fittings	ISO-UNI Fittings Socket Welding	110	100	10	135	101	59	815

Size range: d 20 ÷ d 110 (mm)
Nominal pressure: PN 10 with water at 20° C
Temperature range: 0 °C ÷ 100 °C
Coupling standards:
- Welding: EN ISO 15494. Can be coupled to pipes according to EN ISO 15494
- Flanging system: ISO 7005-1, EN 1092-1, EN ISO 15494, ANSI B16.5 cl.150
Reference standards:
- Construction criteria: EN ISO 15494
- Test methods and requirements: EN ISO 15494
- Installation criteria: DVS 2202-1, DVS 2207-11, DVS 2208-1, UNI 11318
Fitting material: PP-H
Seal material: EPDM, FKM

1.8 MB, PDF

ISO - UNI FITTINGS SOCKET PP-H Technical Catalogue
