HBM PN10 SDR 11 - S 5 - Fittings equal ends

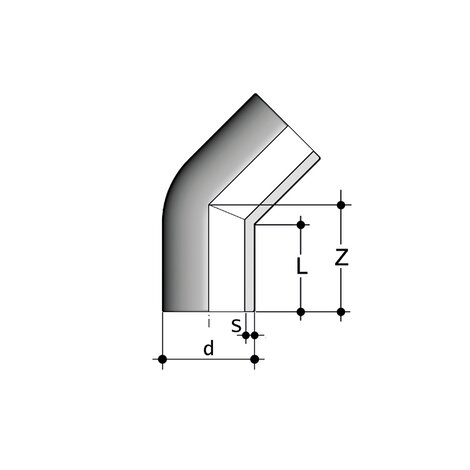

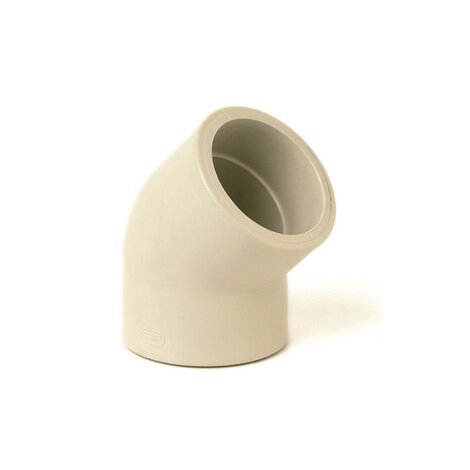

45° bend, long spigot for butt welding PN10 SDR 11 - S 5.

Series of fittings designed for conveying fluids under pressure with a weld connection system (butt welding).
HBM SDR 11 - S 5 - Fittings equal ends
HBM SDR 11 - S 5 - Fittings equal ends
HBM SDR 11 - S 5 - Fittings equal ends
HBM SDR 11 - S 5 - Fittings equal ends
Reference Other description system Category family division subfamily d L Z s g
HBM11020 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *20 52 72 1,9 19
HBM11025 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *25 57 76 2,3 30
HBM11032 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *32 71 90 2,9 56
HBM11040 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *40 73 95 3,7 88
HBM11050 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *50 62 76 4,6 110
HBM11063 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *63 66 88 5,8 205
HBM11075 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *75 71 90 6,8 290
HBM11090 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *90 83 105 8,2 460
HBM11110 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *110 93 121 10 785
HBM11125 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *125 98 137 11,4 1130
HBM11140 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *140 122 168 12,7 1685
HBM11160 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *160 143 190 14,6 2550
HBM11180 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *180 141 196 16,4 3285
HBM11200 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *200 153 207 18,2 4540
HBM11225 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *225 153 210 20,5 5750
HBM11250 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *250 134 220 22,7 7875
HBM11280 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *280 143 227 25,4 10060
HBM11315 *resale products PP-H system Pressure Fittings Sistema PP-H testa/butt welding Sistema PP-H testa/butt welding Accesorios PP-H *315 155 250 28,6 13675
