LIV
Adaptor fittings - tank connectors.

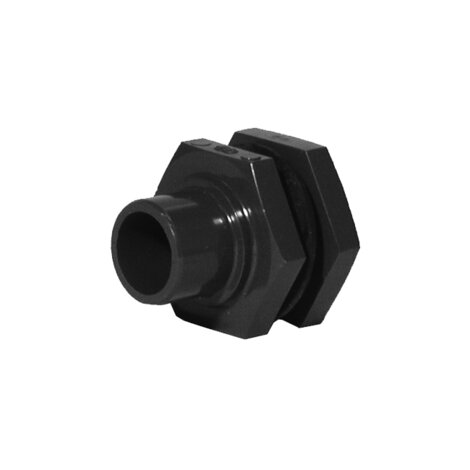

Tank connector with solvent weld spigot d, threaded joint R with tightening nut and flat gasket in EPDM.
Series of fittings designed for conveying fluids under pressure with threaded and solvent weld cold chemical jointing systems (solvent welding) using suitable solvent cement and cleanerprimer.
| Reference | tooltipImage | system | Category | family | d x R | PN | A | H | K | K[5:1] | L | L[5:1] | L[5:2] | P | g |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LIV025100 | - | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 25 x 1" | 16 | 58 | 60 | 46 | 46 | 26 | 19 | 16 | 2 | 58 |
| LIV032114 | - | PVC-U system | Pressure Fittings | ISO-BSP Fittings | 32 x 1"1/4 | 16 | 62 | 66 | 55 | 50 | 28 | 22 | 18 | 2 | 90 |
