LS Quick Kit DN10-50
Accessories for VKD and TKD Dual Block® series ball valves DN 10÷50
The Limit Switch Quick Kit allows the fast and secure installation of the FIP LSQT to the VKD and TKD valves.
The body is in PP-GR and the handle in stainless steel AISI 316.
The handle block at 0° and 90° is also available by default (hole diameter 6.5 mm).
The kit can be assembled on the valve even if already installed on the system.

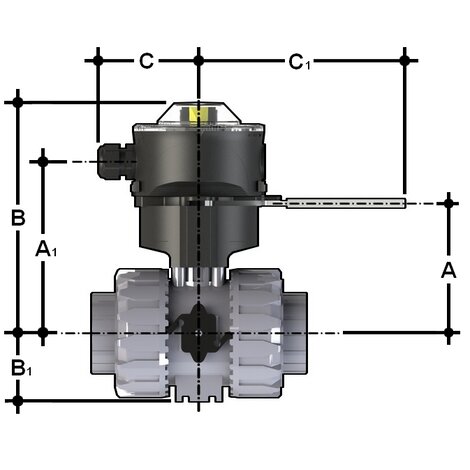

| Reference | tooltipImage | product.detail.attribute.textBelowTableText | system | Category | family | DN | A | A[5:1] | B | B[5:1] | C | C[5:1] | to be used with: |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LSQKIT20 | - | * For TKD only 90° rotation | Special parts and accessories | Accessories for manual valves | Accessories for DualBlock ball valves | 10-15 | 60 | 91,5 | 137 | 29 | 76,5 | 157,5 | VKD-TKD* |
| LSQKIT25 | - | * For TKD only 90° rotation | Special parts and accessories | Accessories for manual valves | Accessories for DualBlock ball valves | 20 | 71 | 102,5 | 148 | 34,5 | 76,5 | 157,5 | VKD-TKD* |
| LSQKIT32 | - | * For TKD only 90° rotation | Special parts and accessories | Accessories for manual valves | Accessories for DualBlock ball valves | 25 | 76 | 107,5 | 153 | 39 | 76,5 | 157,5 | VKD-TKD* |
| LSQKIT40 | - | * For TKD only 90° rotation | Special parts and accessories | Accessories for manual valves | Accessories for DualBlock ball valves | 32 | 93 | 124,5 | 170 | 46 | 76,5 | 157,5 | VKD-TKD* |
| LSQKIT50 | - | * For TKD only 90° rotation | Special parts and accessories | Accessories for manual valves | Accessories for DualBlock ball valves | 40 | 99 | 130,5 | 176 | 52 | 76,5 | 157,5 | VKD-TKD* |
| LSQKIT63 | - | * For TKD only 90° rotation | Special parts and accessories | Accessories for manual valves | Accessories for DualBlock ball valves | 50 | 116 | 147,5 | 193 | 62 | 76,5 | 157,5 | VKD-TKD* |
