LTKD 90 Stroke limiter
Accessories for TKD Dual Block® series ball valves DN 10÷50
The LTKD stroke limiter specifically permits handle and ball rotation only at set opening and closing angles.
The LTKD090 version permits operations for 90° angles.

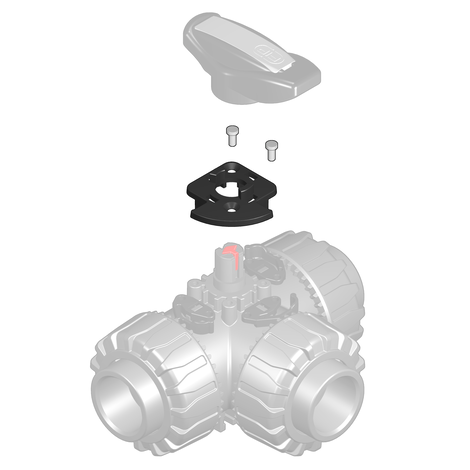

The LTKD stroke limiter is made up of a single removable plate made of technopolymer.
Designed for ISO 5211 bore and specifically designed to be directly housed on the valve body mounting flange.
It is secured to the valve body by self-tapping screws or plastic rivets.
| Reference | system | Category | family | division | subfamily | d | DN | To be used with: |
|---|---|---|---|---|---|---|---|---|
| LTKD090020 | Special parts and accessories | Accessories for manual valves | Recambios y accesorios | Recambios y accesorios | Recambios y accesorios válvulas manuales | 16 - 20 | 10 - 15 | TKD |
| LTKD090032 | Special parts and accessories | Accessories for manual valves | Recambios y accesorios | Recambios y accesorios | Recambios y accesorios válvulas manuales | 25 - 32 | 20 - 25 | TKD |
| LTKD090050 | Special parts and accessories | Accessories for manual valves | Recambios y accesorios | Recambios y accesorios | Recambios y accesorios válvulas manuales | 40 - 50 | 32 - 40 | TKD |
| LTKD090063 | Special parts and accessories | Accessories for manual valves | Recambios y accesorios | Recambios y accesorios | Recambios y accesorios válvulas manuales | 63 | 50 | TKD |
