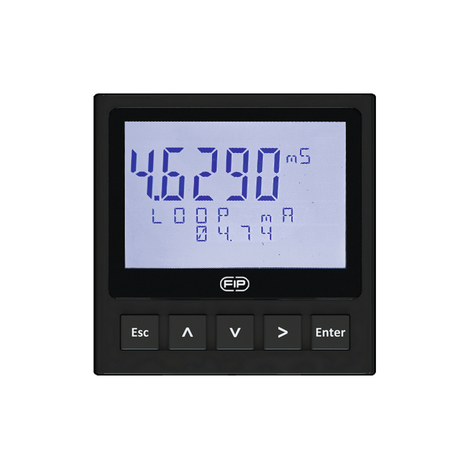

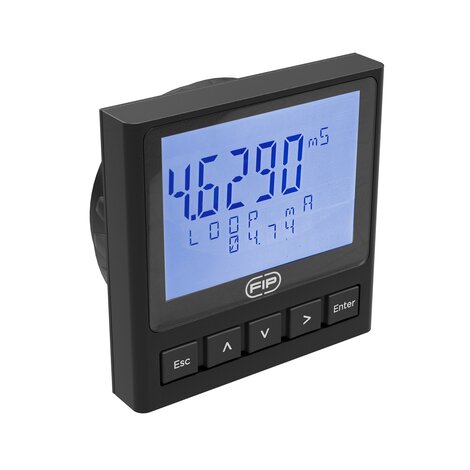

M9.35.PX - M9.35.WX
Conductivity Monitor and Transmitter.
The FLS M9.35 is a high-performance device designed for industrial and water treatment applications, including ultrapure water production. The large 4” display with high-brightness backlight ensures clear reading of values even from a distance, showing conductivity, resistivity, or TDS according to requirements. The freely configurable cell constant allows the use of any 2-cell conductivity probe, ensuring maximum flexibility. The 4-20 mA analog output enables transmission of measurement data to remote systems for precise and reliable process control.
| Reference | system | Category | family | series | division | subfamily | Mounting | Power supply | Wire power Technology | Sensor Input | Output | Weight (gr) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M9.35.P1 | Automation system | FLS Measurement and control Instrumentation | Medición | Monitors for Flow, pH/ORP, Conductivity measurement and control | Medición | Medidores electrónicos de caudal | Panel | 12 - 24 VDC | 3/4 wires | Conductivity, Temperature | 1(4-20mA) | 550 |
| M9.35.W1 | Automation system | FLS Measurement and control Instrumentation | Medición | Monitors for Flow, pH/ORP, Conductivity measurement and control | Medición | Medidores electrónicos de caudal | Wall | 12 - 24 VDC | 3/4 wires | Conductivity, Temperature | 1(4-20mA) | 650 |
| M9.35.W2 | Automation system | FLS Measurement and control Instrumentation | Medición | Monitors for Flow, pH/ORP, Conductivity measurement and control | Medición | Medidores electrónicos de caudal | Wall | 110 - 230 VAC | 3/4 wires | Conductivity, Temperature | 1(4-20mA) | 750 |
APPLICATIONS:
- Water treatment and regeneration
- Industrial wastewater treatment and recovery
- Softening
- Filtration systems
- Desalination
- Production of demineralised water
- Reverse osmosis/EDI
- Cooling monitoring
- Processing and manufacturing industry
- Chemical production
MAIN CHARACTERISTICS:
- Large graphic display with backlight
- Temperature compensation dedicated to the production and use of ultrapure water (UPW)
- Freely settable cell constant
- Values in conductivity, resistivity, TDS
