PFV

Threaded fittings.

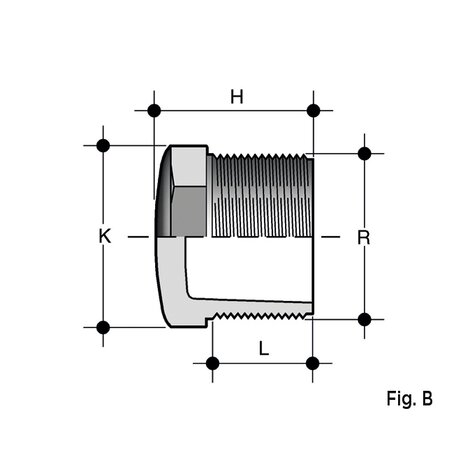

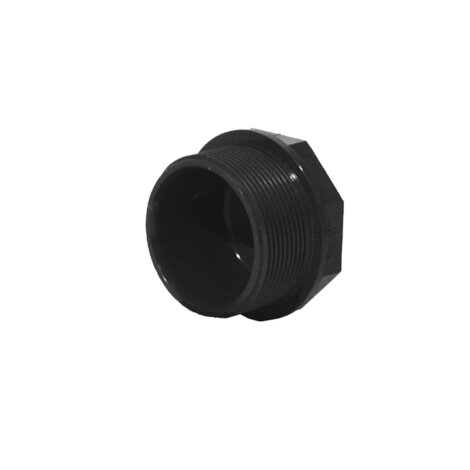

Plug with BSP male thread (Fig. B).

Series of fittings for pipes conveying fluids under pressure with threaded joints.

Reference	system	Category	family	division	subfamily	R	PN	E	H	K	L	g
PFV212	PVC-U system	Pressure Fittings	Sistema PVC-U	Sistema PVC-U	Tubo y accesorios PVC-U presión	2"1/2	16	-	61	80	30,2	180
PFV300	PVC-U system	Pressure Fittings	Sistema PVC-U	Sistema PVC-U	Tubo y accesorios PVC-U presión	3"	16	-	71	93	33,3	245
PFV400	PVC-U system	Pressure Fittings	Sistema PVC-U	Sistema PVC-U	Tubo y accesorios PVC-U presión	4"	16	-	87	118	39,3	550
