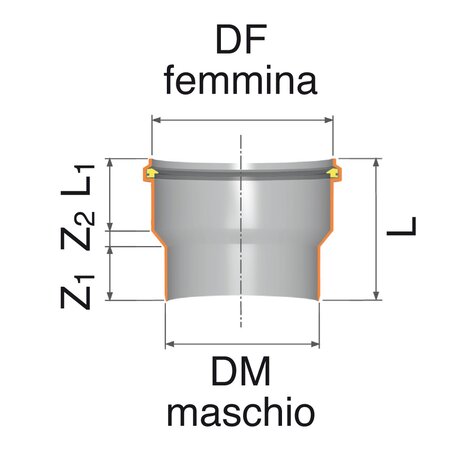

| Reference | tooltipImage | Z1 (mm) | Z2 (mm) | L1 (mm) | DN Female | DN Male | Material | L (mm) | Version |
|---|---|---|---|---|---|---|---|---|---|
| 0930712 | - | - | - | - | 75 | 63 | PVC | - | - |
| 0930812 | - | - | - | - | 80 | 75 | PVC | - | - |
| 0520952 | - | 67 | 10 | 90 | 110 | 90 | PVC | 148 | - |
| 0521152 | - | 67 | 10 | 90 | 110 | 100 | PVC | 148 | - |
| 0931212 | - | 77 | 18 | 102 | 125 | 100 | PVC | 172 | - |
| D931112 | - | - | - | - | 125 | 110 | PVC | - | - |
| Z6922PP | - | - | - | - | 110 | 100 | PVC | - | LONG |
Downloads
2 MB,
PDF
Catalogue REDI
